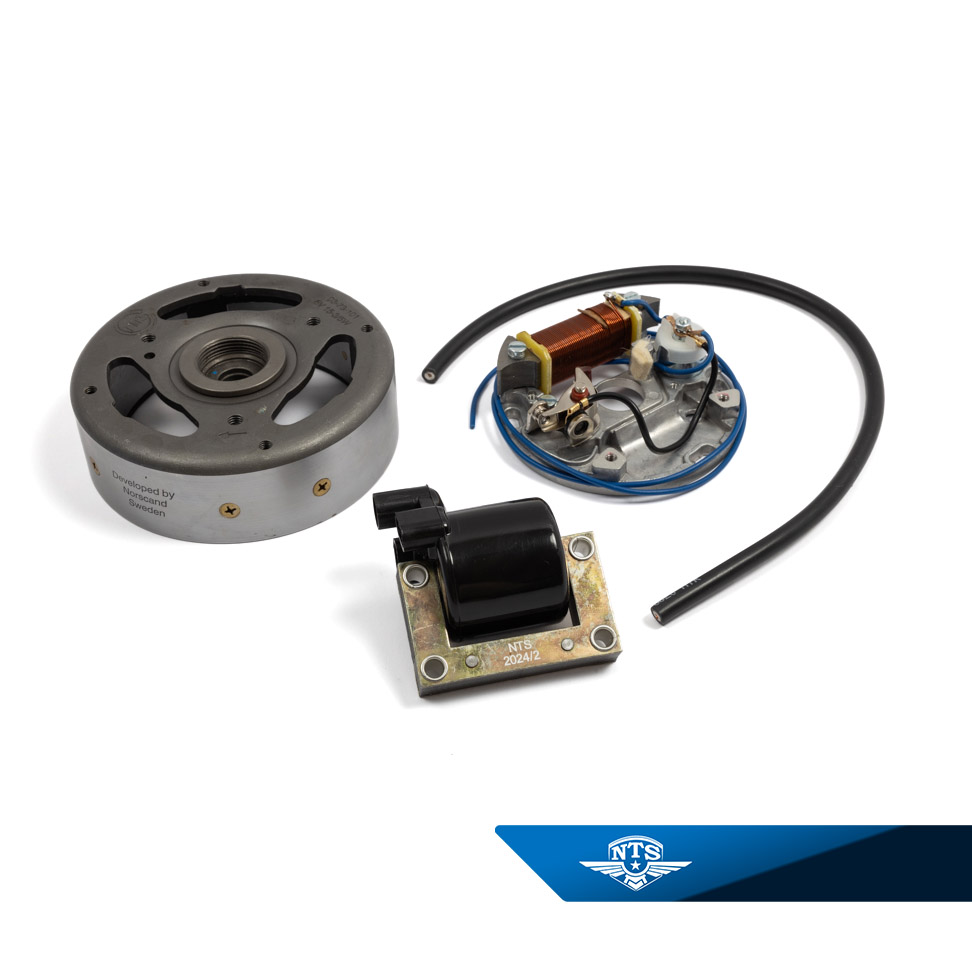

Flywheel magneto assy. NTS for Puch Magnum X

Replaces Bosch system for: Puch Magnum X


Technical specifications:

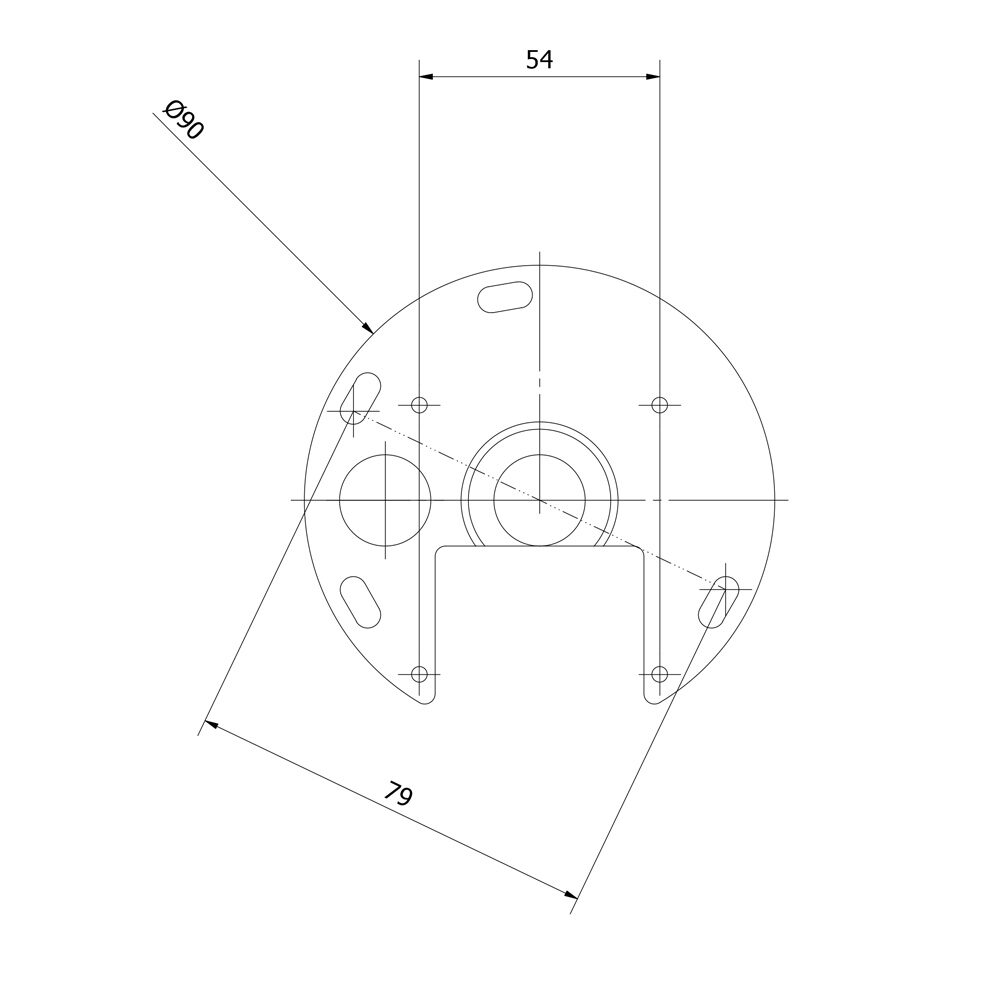

Base outer diameter: Ø= ca.90mm
Base, boltdistance c-c: ca79.mm (4pcs fixing holes)
Ignition coil: External

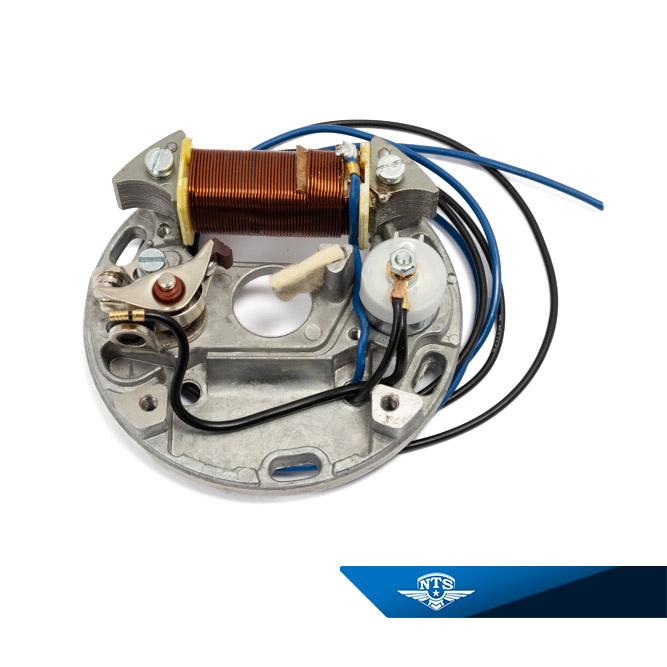

Primary coil, boltdistance: c-c: ca.54mm
Lightcoil: without lights
Intended for cranc shaft conicity: K1:5(20%) starting on: Ø~12mm

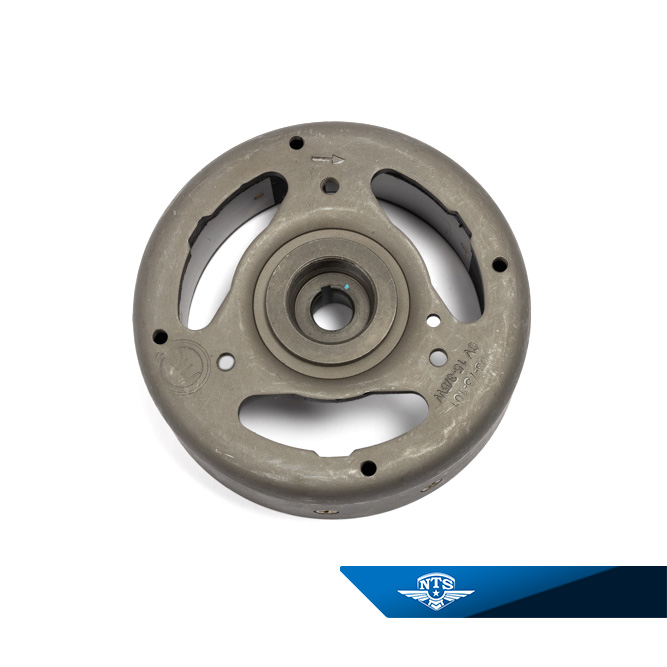

Rotation direction: Clockwise(on the left side)
Fly wheel puller: Thread M26x1,5 (see NTS art.no: 01-37-401)

Specification

SKU:
K-4058
Category
Weight 1,3 kg
Trademark

NTS Premium Parts

Standard Unit

Set

Additional Info

Note:

  • Grease the felt that lubricates the flywheel cam to reduce wear on the switch lug!
  • The contact distance is set to approx. 0.35~0.45mm at fully open switch tips. Performed using a blade gauge (see art.no. 14-61-401)

    The product is suitable for

    • Puch
      • Magnum X
