Wheel bearing set NTS for Sachs H-905

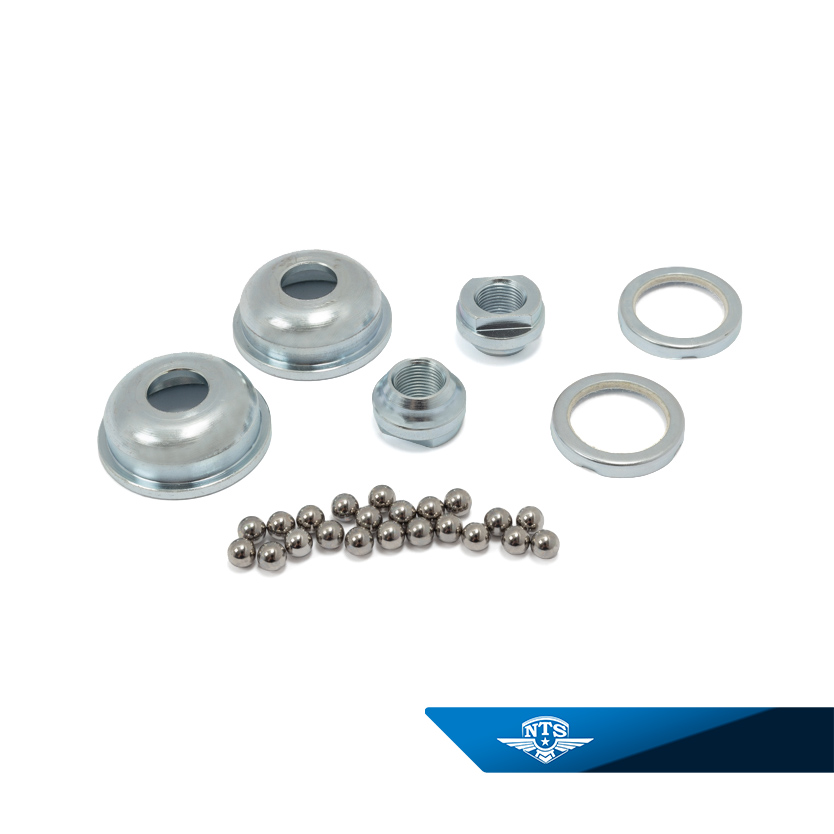

Wheel bearing kit for Sachs H-905 – complete with cones, cups, balls, and dust covers for one wheel.

Designed to restore the hub’s original function and precision. The kit includes loose cones and bearing cups along with ball bearings and dust covers, providing a complete solution for servicing or restoring this classic system.

Performance:

  • Cones and cups made of hardened steel with precision
  • Ball bearings from SKF with consistent tolerance for optimal rolling performance
  • Dust covers that effectively protect against dirt, moisture, and contaminants
  • Exact fit for Sachs V-905 – no modifications required


Note:

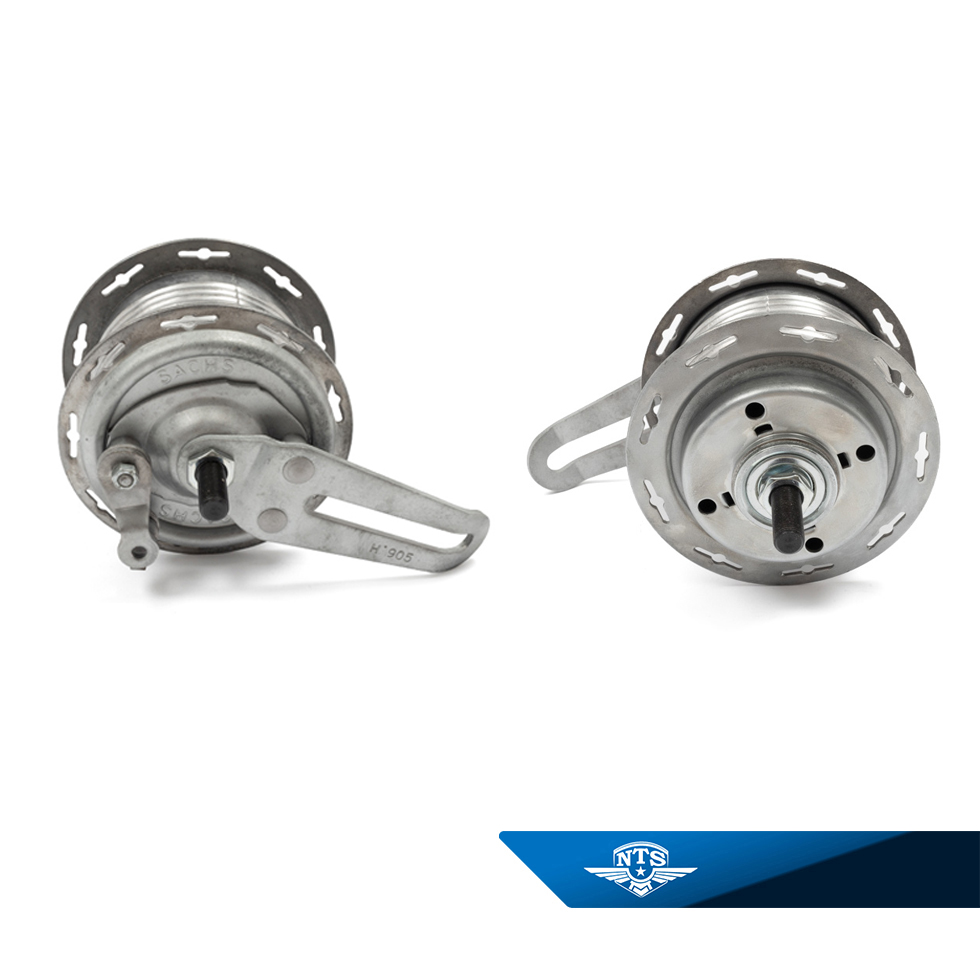

Image number 2 is for hub identification only.

Always measure the diameter at the bearing seat in your hub to ensure it matches the bearing cup specification.

Specification

SKU:
10-14-607
Category
Weight 0,12 kg
Original number

Hercules: 0835 202 000 (0835 207 000) / 0232 185 000 / 0875 201 000 KTM: 130.10.011.000 / 120.10.016.000

Trademark

NTS Premium Parts

Standard Unit

Set

Additional Info

Technical information:

  • Bearing cone: M12x1 Ø = 22mm
  • Bearing cup Ø: 35mm
  • Surface treatment: Zinc-plated
  • Balls: 1/4" (6.35mm)
  • Number of balls: 22 pcs
  • For hubs: Sachs H-905 (90mm)

Array

    The product is suitable for

    • Hercules
      • PRIMA_2N
      • Prima 2S/M4/4/4S/4N (Sachs 505/1)
      • Prima 3S/M5/M5S/5/5S/5N/6 (Sachs 505/2)
    • KTM
      • Hobby/Foxi/505/L/LS (Sachs 504/505) 1974-
      • Pony/505/S/SS/SL/SB/Cross (Sachs 505)
