Wheel bearing set NTS for Monark 90mm

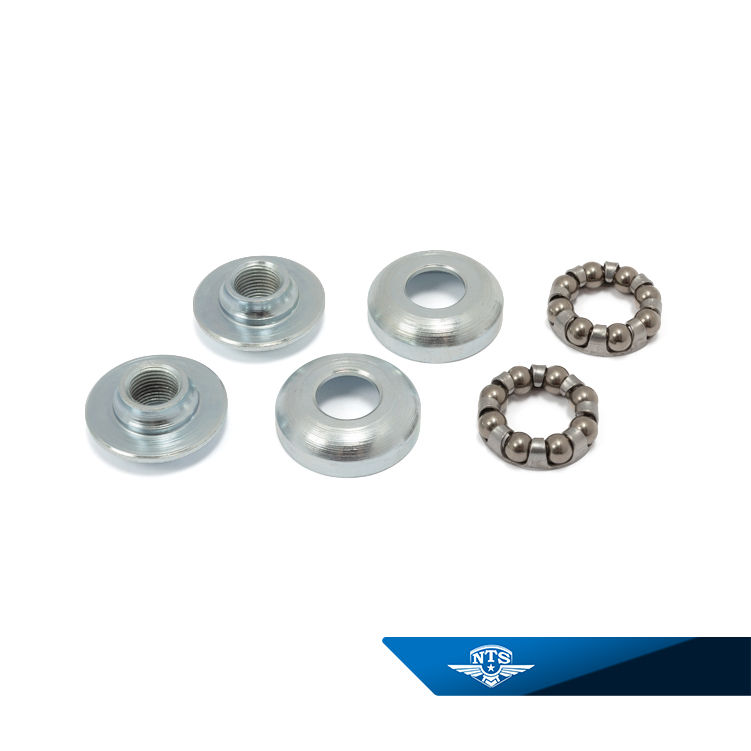

Wheel bearing kit for Monark 90mm – complete with cones, cups, and ball retainers for one wheel.

Designed to restore the hub’s original function and precision. The kit includes loose cones and bearing cups along with ball retainers, providing a complete solution for servicing or restoring this classic system.

Performance:

  • Cones and cups made of hardened steel with precision
  • Exact fit for Monark 90mm – no modifications required


Note:

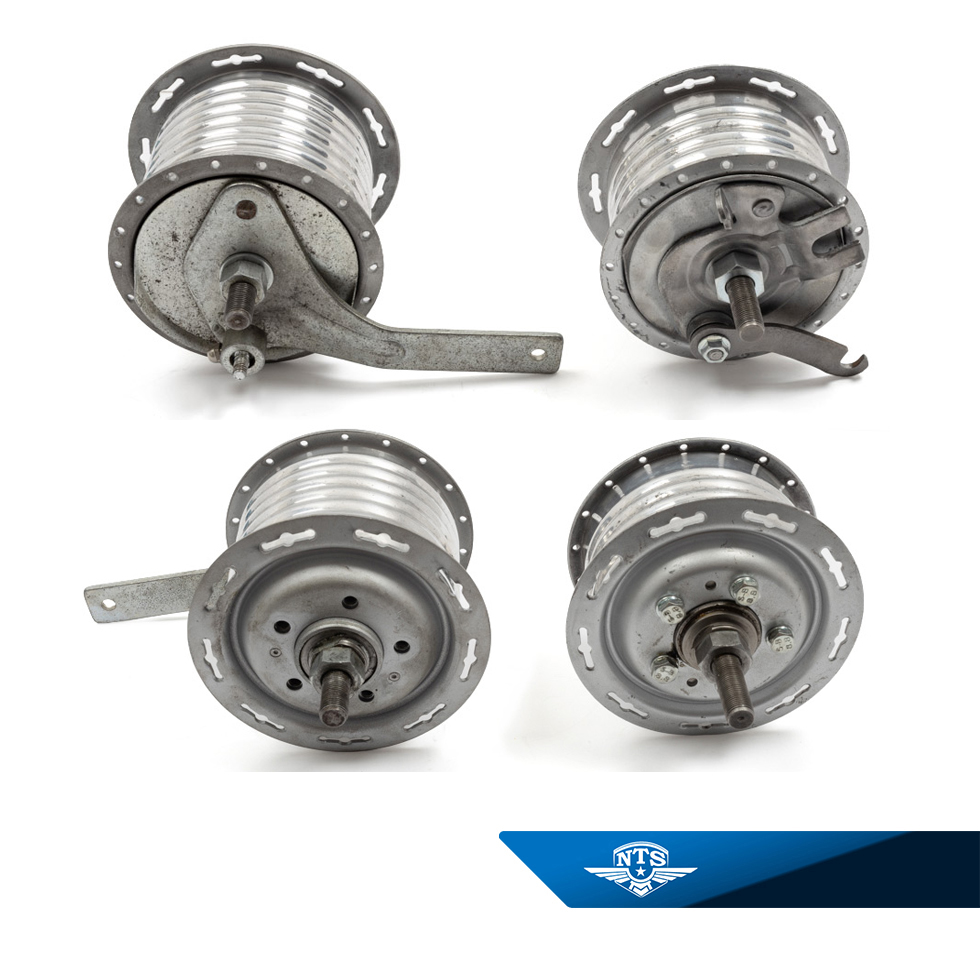

Image number 2 is for hub identification only.

Always measure the diameter at the bearing seat in your hub to ensure it matches the bearing cup specification.

Specification

SKU:
10-14-604
Category
Weight 0,1 kg
Original number

Monark: 23800/14 / 1504 / 23800/16 Mustang: 3644 / 3645 / 3646
Trademark

NTS Premium Parts
Standard Unit

Set
Additional Info

Technical information:

  • Bearing cone: M12x1
  • Bearing cup Ø: 30.8mm
  • Surface treatment: Zinc-plated
  • Number of ball retainers: 2 pcs
  • For hubs: Monark 90mm
Array

    The product is suitable for

    • MCB (Monark & Crescent) 1961-1981
      • MODEL_MONARK_349_1211
      • Monark Jubileumsmonarped 1231/1241
      • Monark Lyx Monarped 1232/1242/1282
      • Monark Skotermoped 1251/1261
      • Monark Sport Monarped 1222/1292
      • Monark Standard Monarped 1202/1212
      • Monark Ungdomsmonarped 1221/1291
    • Monark -1960
      • Monarped 309 "La Strada" (Ilo G50 Piano)
      • Monarped 31/34/308/348/349/61 (Ilo G50 Piano)
      • Monarped 448/449 (HVA)
      • Monarscoot 33/338/339 (Ilo G50 Piano)
    • Mustang
      • 563/573/583/593/603. 1956~1960
      • 567/577. 1956~1957
      • 578/588/598. 1957~1959
      • 579/589/599/609. 1957~1960
      • 596/606. 1959~1960
      • 600/610 Mopedscooter 1960~1970
      • 613. 1961~1970
      • 616. 1961~1970
      • 617. 1961-1981
      • 618. 1961-1974
