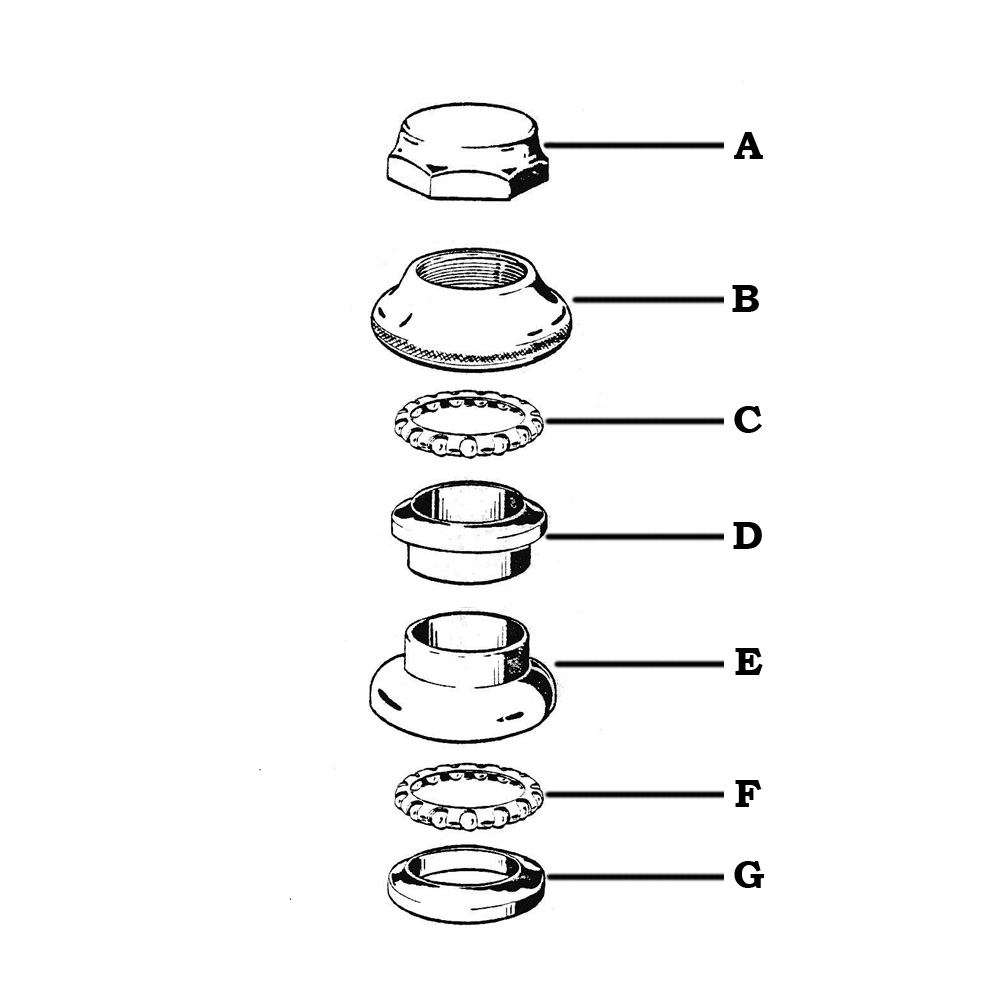

Tekniska data:

• A: Locking nut closed, chrome-plated with thread: 1"-26g
• B: Outer race, upper with thread 1"-26g
• C: Ballring with 15pcs 3/16"(4,76mm) outer diameter Ø=39mm
• D: Cone, upper for steering head with 30mm innner diameter.
• E: Outer race, lower for steering head with 30mm innner diameter.
• F: Ballring with 15pcs 3/16"(4,76mm) outer diameter Ø=39mm
• G: Cone, lower for steering stem with flange 25,8mm

The set is manufactured according to the old swedish standard for the bicycle and moped industry and are hardened and electro-galvanized for very long durability!

Corresponds to following original nos:

Monark/MCB
Locking nut:  24865-2
Outer racer, upper: 6075/5, 6110-5, 6111-5, 24878-1, 6115-5
Cone, lower: 6075/7, 6110-7, 6111-7, 24878-2, 6115-7
Ballring: 6075/6, 1506, 1508, 24878-5, 6115-6
Outer racer, lower: 6075/8, 6110-8, 6111-8, 24878-3, 6115-8
Cone, lower: 6110-9, 6111-9, 24878-4, 6115-9

Tunturi
Locking nut:  521.116.60 (old no.60.201)
Outer race, upper: 521.111.60 (old no. 60.202)
Cone, upper: 521.112.60 (old no. 60.203)
Ballring: 521.113.60 (old no. 60.204)
Outer race, lower: 521.114.60 (old no. 60.205)
Cone, lower: 521.115.60 (old no. 60.206)

Solifer
Locking nut:  1601 0261
Outer race, upper: 1601 0266
Cone, upper: 1601 0268
Ballring: 1601 0267
Outer race, lower: 1601 0269
Cone, lower: 1601 0270

Important: The parts cannot be combined with older original parts according to the original numbers above. The new steering bearing replaces the old one as a whole, i.e. all parts must be replaced!
