Wheel rim 1,50×17″ Stainless steel

Fits for:
Various mopeds with 17″ wheels such as Puch, Zündapp, Kreidler etc. This rim is the same in profile and meassurements as 04-25-201 rim 1.50-17″ steel/chrome, but made of high-quality stainless steel instead.

Rim data:

  • Material: Stainless steel
  • Surface treatment: –
  • Number of holes: 36pcs

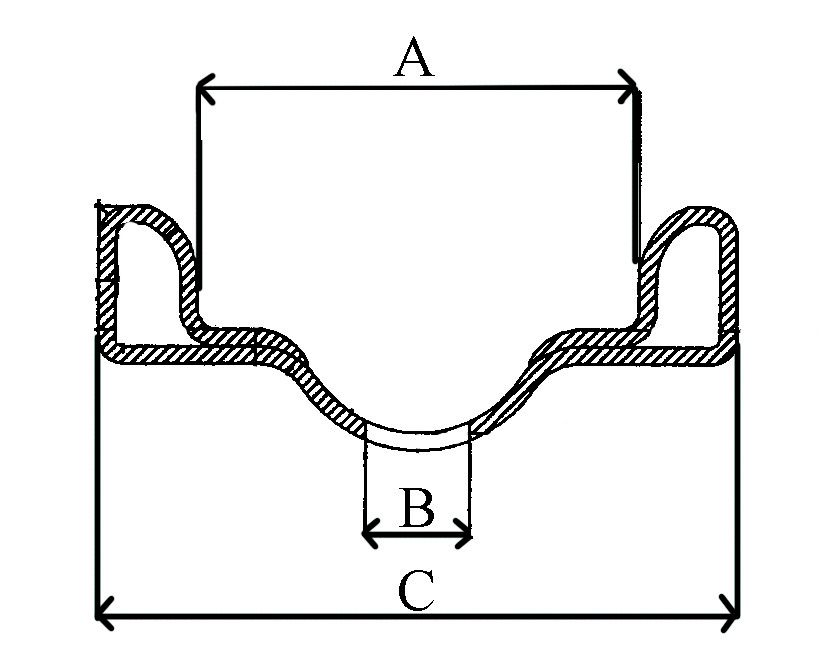

  • Profile width inner: A=38mm
  • Hole for nipple: B=6,6mm
  • Profile width outer: C=56mm
  • Mainly intended for tiredimensions: 2.50/2.75-17″ (21″-2.50/2.75)
  • Manufacturer/trademark: Italcerchio /Radaelli

NOTE: When
the size specification in inches is given last in the tire dimension,
it refers to the inner diameter of the tire, i.e. the rim dimension
(newer way of measuring). When the size specification in inches is given
first, it refers to the outer diameter of the tire (the old way of
measuring)

Specifikation

SKU:
04-55-105
Kategori
Weight 4,1 kg
Trademark

Italcerchio

Standard Unit

Pcs

Additional Info

Can replace following orig.no.:
Zündapp: 517-15.119 / 433-15.114 / 511-15.115(Alu)
Puch: 328.1.40.033.1 / 367.1.40.033.1
Mustang: 12040
Hercules: 15 003 07816 09
MCB: 21310
Rex/KTM: 31 09 070
Tempo/DBS: 82-342-40 (82-142-20 Alu)
Suzuki: 55311-07020 Drumbrake / (55311-46100 Discbrake)
Yamaha: 94414-17003 FS1 rear, 94414-17090 FS1-DX front

NOTE: Small differences in dimensions and profile occur in comparison with the above original rims!

    Produkten passar till

    • BRAND_HELKAMA
      • Mini GT
    • Casal
      • K-190
    • DBS
      • Panter 2621/2622 (Sachs 50/3KFS)
      • Rally 3040 (Sachs 50S)
      • Safir 2601/3000/3001 (Sachs 50/2KS)
      • Safir 3033/3034 (Sachs 50/AS)
      • Sport 3022 (Sachs 50/4)
      • Sport 3024/3025 (Sachs 50/3LFS/50/3KFS)
    • Hercules
      • K50 Sport/Super Sport 1967-1969 (Sachs 50S)
      • K50RE/K50SE 1973-1974 (Sachs 50S)
      • K50RL/K50SL/K50RL-C 1975-1980 (Sachs 50S)
      • K50RX/K50SX 1970-1972 (Sachs 50S)
      • MK1/MK2 1975-1978(Sachs 501)
      • MK3M/MK4M 1973-1974 (Sachs 501)
      • MK3X/MK4X 1970-1972 (Sachs 501)
      • MK4/MK50 Super 4 -1969 (Sachs 501/4)
      • MK50 (Sachs 50/3)
      • Ultra/Ultra LC/Ultra II LC (Sachs 50S)
    • Jupiter/Øglænd
      • Rally 4021
      • Safir 4002
      • Sport 4012
    • KTM
      • Comet GP50MS/Cross 50MS (Sachs 501/4)
      • Comet GP50S/RS (Sachs 50S)
    • MCB (Monark & Crescent) 1961-1981
      • MCB 50SS 1228
      • MCB F50/F50GL/GLX 1294
      • MCB SM50/E-type 1272/1293
      • MCB Topper 1205/1215
    • Mustang
      • Anaconda 1974~1975
      • Cobra 1973-1977
      • Cross 618. 1965-1966
      • Cross B 1973~
      • Cross Special 1966-1979
      • TT/TT Super 1966-1973
    • Puch
      • M50 Cross
      • M50 Jet, 6-Gear (337)
      • M50 Racing/Skylark (NL)
      • M50 Racing/Sport/GP/SG
      • M50 S/SE
      • M50 Skyhawk (NL)
      • Monza 3/4-Gear, 4S/4SL/4C/4XL/4GP
      • VF50 Sport (UK)
      • VZ50 (VSD)
      • VZ50-3/3P (Flagskib)
      • VZ50-4
      • VZ50/60R
      • VZ50M
      • VZ50V3 Dakota (SE)
      • VZ50V4
    • Rex (Sweden)
      • Comet (Sachs 50/3LFS)
      • Comet Grand Prix (Sachs 50/3KFS)
      • Comet Racer (Sachs 50/3KFS)
      • MODEL_COMET_CROSS
      • Sprint (Sachs 50/3BKFS)
    • Sears (USA)
      • Sabre 1965-1967
    • Solifer
      • GT 1980-1981
      • SM50 1974-1976
      • SM50 1977-1986
      • SMA 1976-1979
    • Sparta
      • Sport 2v (Sachs 50/2)
      • Sport 3v (Sachs 50/3)
    • Suzuki
      • K50B
      • K50DB
      • K50DN
      • K50DZ
      • K50N
      • K50Z
    • Tempo
      • Corvette 380 1971-1980 (Sachs 50/4MLKAX)
      • Corvette 380 1981-
      • Corvette 390 (50/3MLKAX) 1972-1975
      • Panter 330 (Sachs 50/4MLKAX)
      • Panter 340/350/360 (Sachs 501/4AKFX)
      • Panter 370/460/470 1973-1980 (Sachs 501/4BKF)
      • Panter 460/470 1981-
    • Tunturi
      • Pappa Automat
      • Pappa Classic
      • Pappa Lähetti
      • Pappa Maxi
      • Pappa Start
    • Yamaha
      • FS1
      • FS1-DX
    • Zündapp
      • 433 Super Combinette (266, 3g)
      • 440 C50 Super (265, 2g)
      • 441 C50 Super (266/278, 3g)
      • 510 Falconette (276, 4g)
      • 510 Sport Combinette (267, 3g)
      • 515 Sport Combinette / KS50 (267, 3g)
      • 516 KS50/KS50 Super SL (283, 5g)
      • 517 C/CS50/GS/GT50 (278, 3g NL)
      • 517 C50 Sport (278, 3g)
      • 517 GTS50 (280, 4g DE)
      • 517 KS50 (284, 5g)
      • 517 KS50/GTS50 (280, 4g) (NL)
      • 529 C50 Sport (278, 3g)
      • 529 CS50 (278, 3g) (NL)
      • 529 GTS50 (280, 4g) (DE)
      • 529 KS50/GTS50 (280, 4g) (NL)
