Rep.kit NTS for throttle (throttle/cap/spring) A50, AC50(K50), FS80

Fits on following carburetors:

Mikuni VM16SC for Suzuki A50/AC50
Mikuni VM16SC for Yamaha FS80

06-64-101 NTS-VM16SC for Suzuki A50, AC50, K50, RV50, MT50

Specification

SKU:
01-24-143
Category
Weight 0,037 kg
Trademark

NTS Premium Parts
Standard Unit

Set
Additional Info

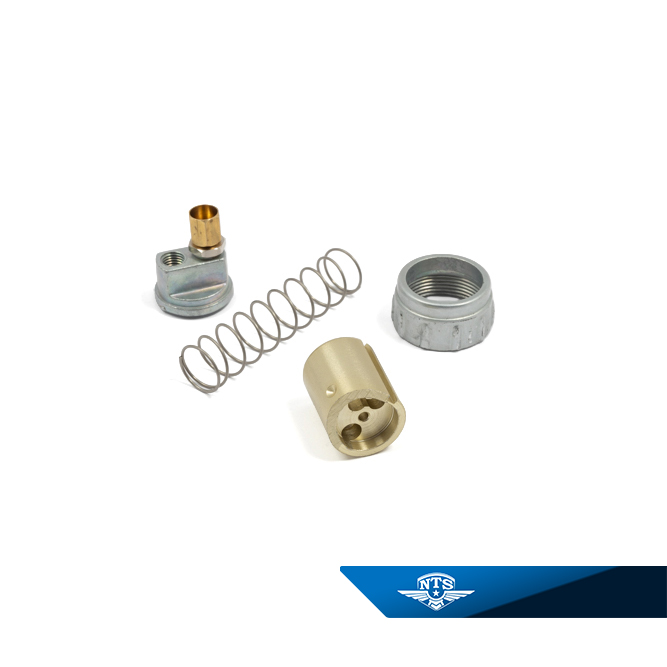

Contents:



  • 1 × Throttle cap / retaining nut (thread: M21)


  • 1 × Inner throttle cap / end piece


  • 1 × Throttle spring


  • 1 × Throttle slide (Ø = 17 mm)


  • 1 × Throttle cable adjuster with lock nut (thread: M6 × 0.75)


Original part numbers:



  • Cap: Suzuki 13265-05110 / Yamaha 180-14168-00


  • End piece: Suzuki – / Yamaha 180-14158-01


  • Throttle spring: Suzuki 13573-05010 / Yamaha 127-14131-00


  • Throttle slide: Suzuki 13551-26010 / Yamaha 283-14112-25


  • Adjuster with lock nut: Suzuki 13577-03010 / 13661-03010

    Yamaha 127-14124-23 / 127-14161-00
Array

    The product is suitable for

    • Suzuki
      • A50 (1971)
      • A50-II/A50L (1972~74)
      • A50K B/DB (1977~78)
      • A50K N (1978-)
      • A50M (1975~76)
      • A50P (1975-78)
      • A50P N/DN (1978-)
      • AC50/AC50L (1971~74)
      • AC50B/DB (1977~78)
      • AC50M (1975~76)
      • AC50N/DN (1978-)
      • AS50 (1971)
    • Yamaha
      • FS80
