Piston Set 39,5/10mm NTS for HVA Flinta (E-engine)

Performance:

  • For 39,5mm cylinder
  • Dimension A: ~47,5mm
  • Dimension B: ~45mm
  • Dimension C: ~29mm

All NTS pistons are of very high quality and are always manufactured in Taiwan, in a factory with over 50 years of experience in piston manufacturing according to NTS’s own manufacturing documents and CAD drawings.

Specifikation

SKU:
01-15-108
Kategori
Weight 0,086 kg
Trademark

NTS
Standard Unit

Kit
Additional Info

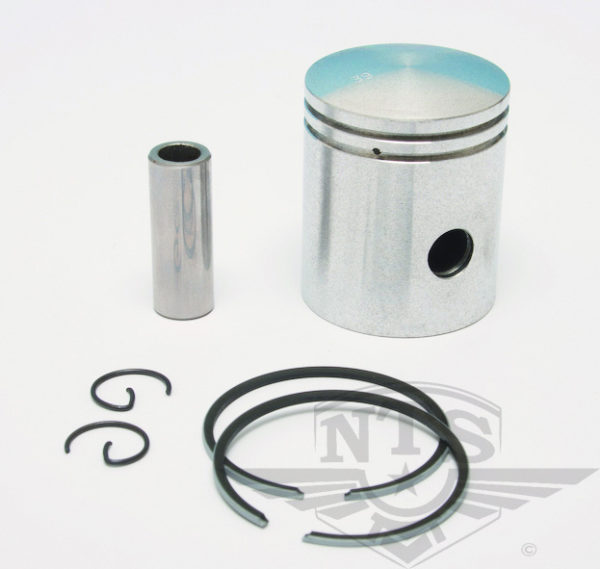

Contains:

  • 1pc. Piston 39,5mm
  • 2pcs. Piston Ring 39,5×1,5mm
  • 1pc. Piston Pin 10x32mm
  • 2pcs. Clip for piston pin 10mm (01-11-503)

The piston must be oiled during assembly and don't forget to check the needle bearing!
For the longest possible durability and lifetime, the piston should be "driven in" during the first approx. 200 kilometers.

*Pistons marked with an arrow, the direction of the arrow must be towards the exhaust port.
*Pistons marked with IN must be against the intake.

    Produkten passar till

    • Husqvarna
      • Cornette/Sport
      • Corona
      • D-motor (Äggmotor)
      • E-motor (Flinta)
      • Lyx
      • Novolette
      • Populär
      • Roulette Populär
      • Roulette Standard/Lyx
      • Standard
