Piston Set 40/14mm NTS for Kreidler “B”

Performance:
  • For 40mm cylinder “B” (Standard)

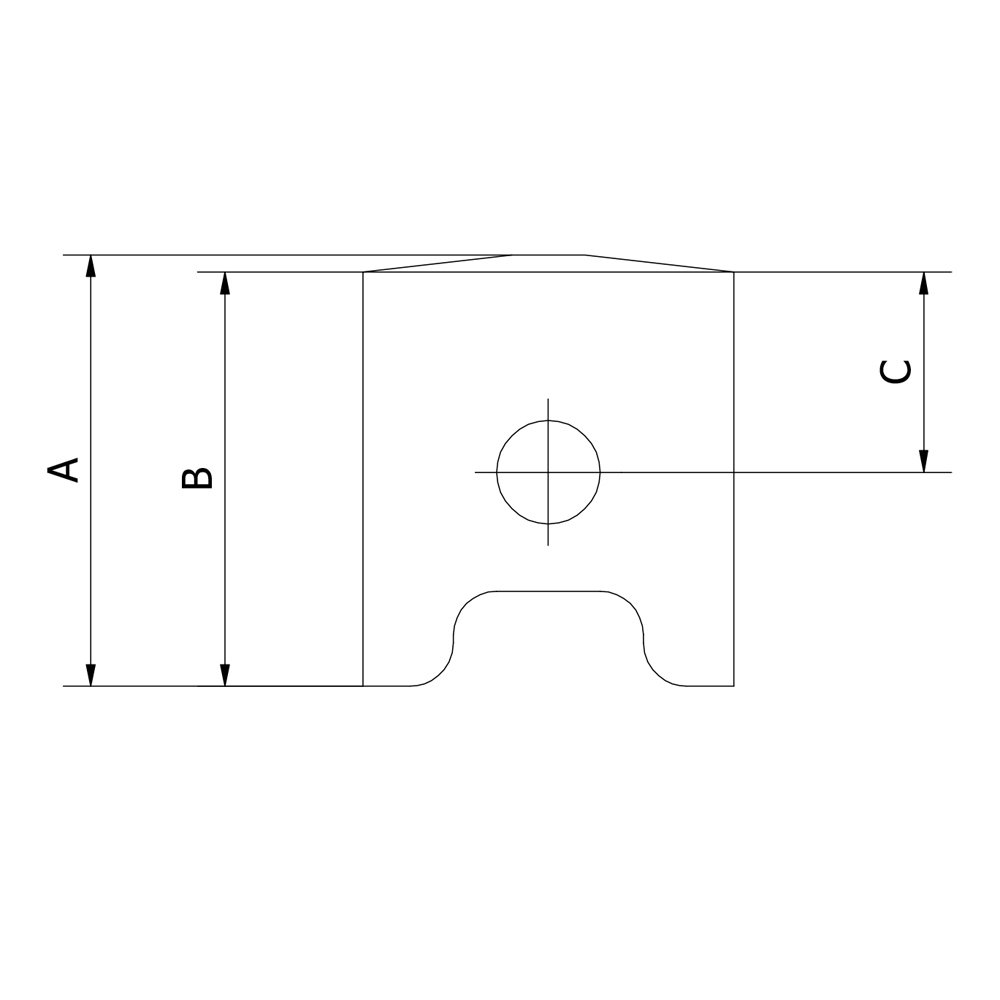

  • Dimension A: ~52mm
  • Dimension B: ~48,5mm
  • Dimension C: ~25mm

All
NTS pistons are of very high quality and are always manufactured in
Taiwan, in a factory with over 50 years of experience in piston
manufacturing according to NTS’s own manufacturing documents and CAD
drawings.

Specification

SKU:
18-15-101B
Category
Weight 0,096 kg
Trademark

NTS Premium Parts
Standard Unit

Kit
Additional Info

Contains:

  • 1pc. Piston 40mm "B"
  • 2pcs. Piston Ring 40×1,5mm (18-15-301)
  • 1pc. Piston Pin 14x33mm
  • 2pcs. Clip for piston pin 14mm (18-15-401)

The piston must be oiled during assembly and don't forget to check the needle bearing!
For the longest possible durability and lifetime, the piston should be "driven in" during the first approx. 200 kilometers.

*Pistons marked with an arrow, the direction of the arrow must be towards the exhaust port.
*Pistons marked with IN must be against the intake.

    The product is suitable for

    • Kreidler
      • Flory 12
      • Flory 13
      • Flory 23/23 SL
      • K54 Florett Cross/RS Export (3-Gear)
      • K54 Florett LH/LF
      • K54 Florett RM/RMC
      • K54 Florett RS
      • K54/512 Florett Mustang
      • K54/512 Florett Mustang Cross
