Piston Set 39/12mm NTS for Zündapp 1971- “E”

Performance:

  • For 39mm cylinder “E” (Standard)

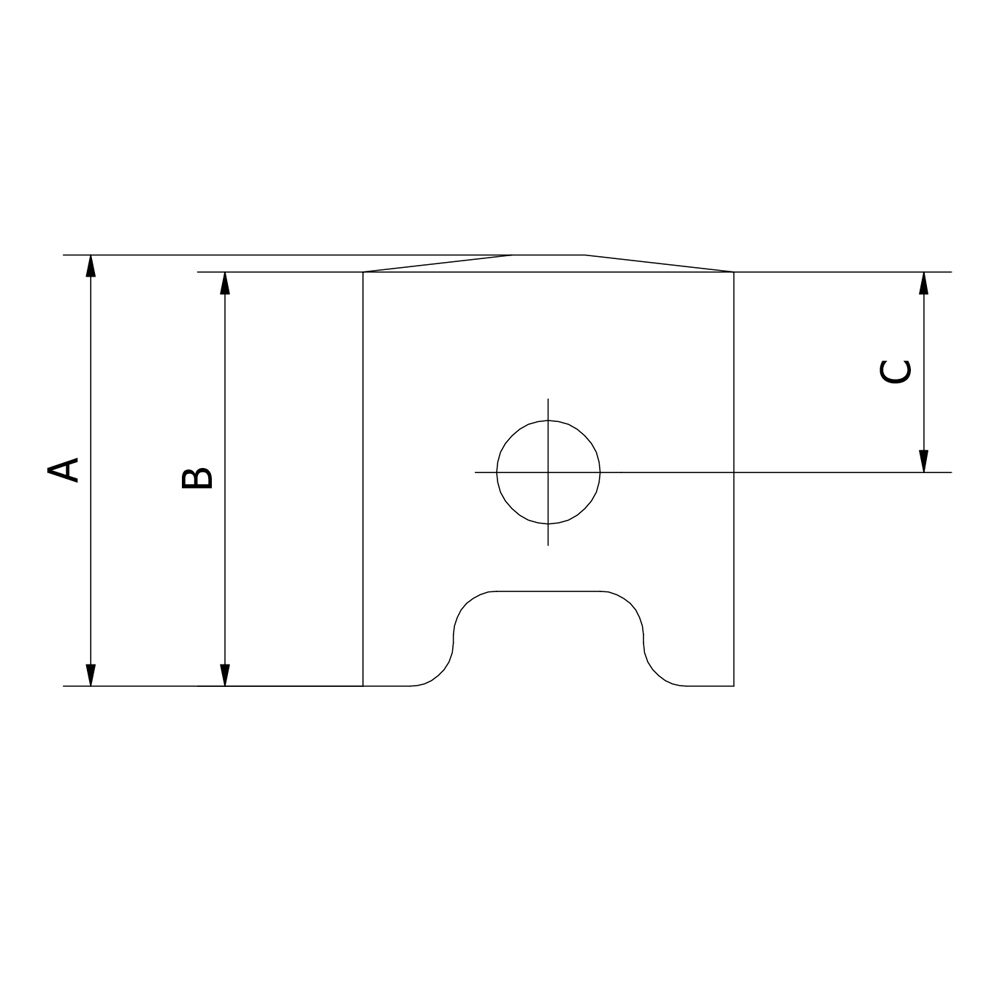

  • Dimension A: ~51mm
  • Dimension B: ~50,5mm
  • Dimension C: ~26,5mm

All
NTS pistons are of very high quality and are always manufactured in
Taiwan, in a factory with over 50 years of experience in piston
manufacturing according to NTS’s own manufacturing documents and CAD
drawings.

Specification

SKU:
01-15-107E
Category
Weight 0,095 kg
Original number

248-02.703
Trademark

NTS
Standard Unit

Set
Additional Info

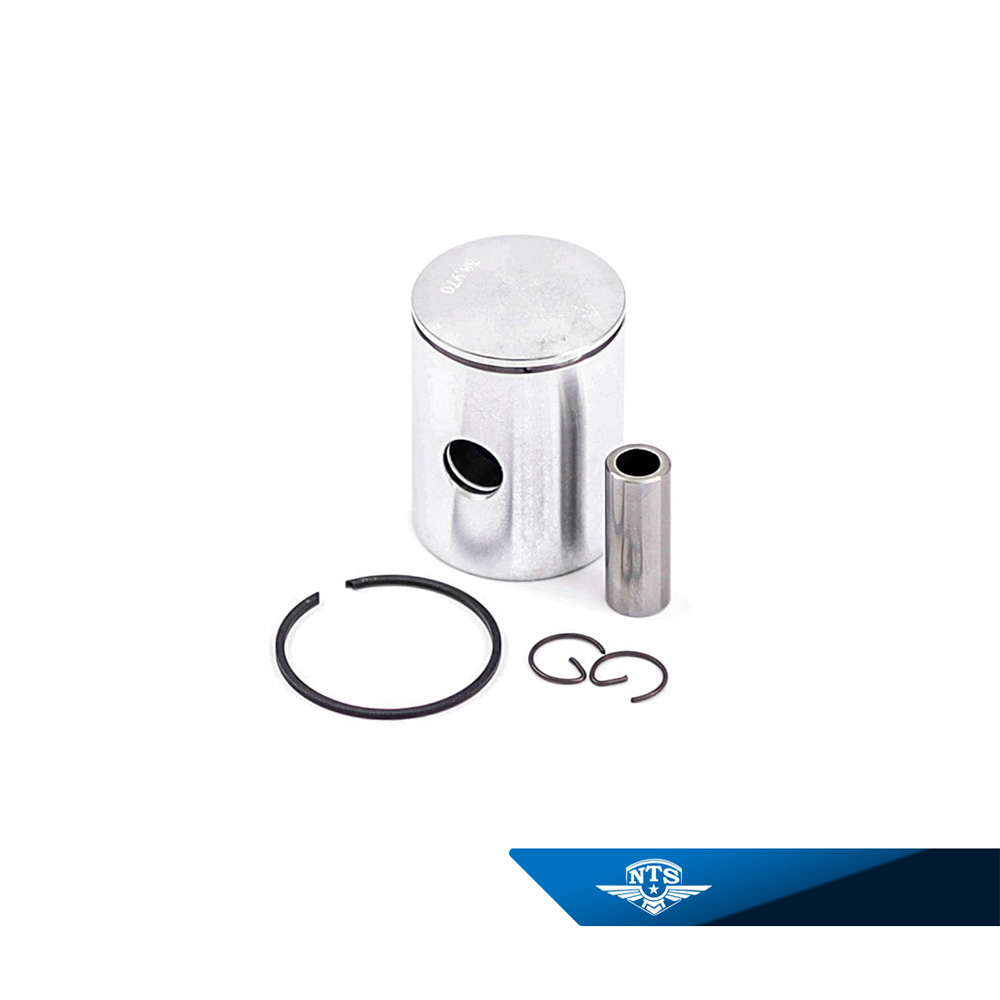

Contains:

  • 1pc. Piston 39mm "E"
  • 1pcs. Piston Ring 39×1,5mm (01-16-202)
  • 1pc. Piston Pin 12x31mm (01-82-401)
  • 2pcs. Clip for piston pin 12mm (01-11-504)

The piston must be oiled during assembly and don't forget to check the needle bearing!
For the longest possible durability and lifetime, the piston should be "driven in" during the first approx. 200 kilometers.

*Pistons marked with an arrow, the direction of the arrow must be towards the exhaust port.
*Pistons marked with IN must be against the intake.

    The product is suitable for

    • Zündapp
      • Engine 265. 2-Gear
      • Engine 266. 2-Gear
      • Engine 267. 3-Gear
      • Engine 276. 4-Gear
      • Engine 278. 3-Gear
      • Engine 280. 4-Gear
      • Engine 284. 5-Gear
