Piston Set 38,6/12mm NTS for Sachs 502

Performance:

For 38,6mm cylinder

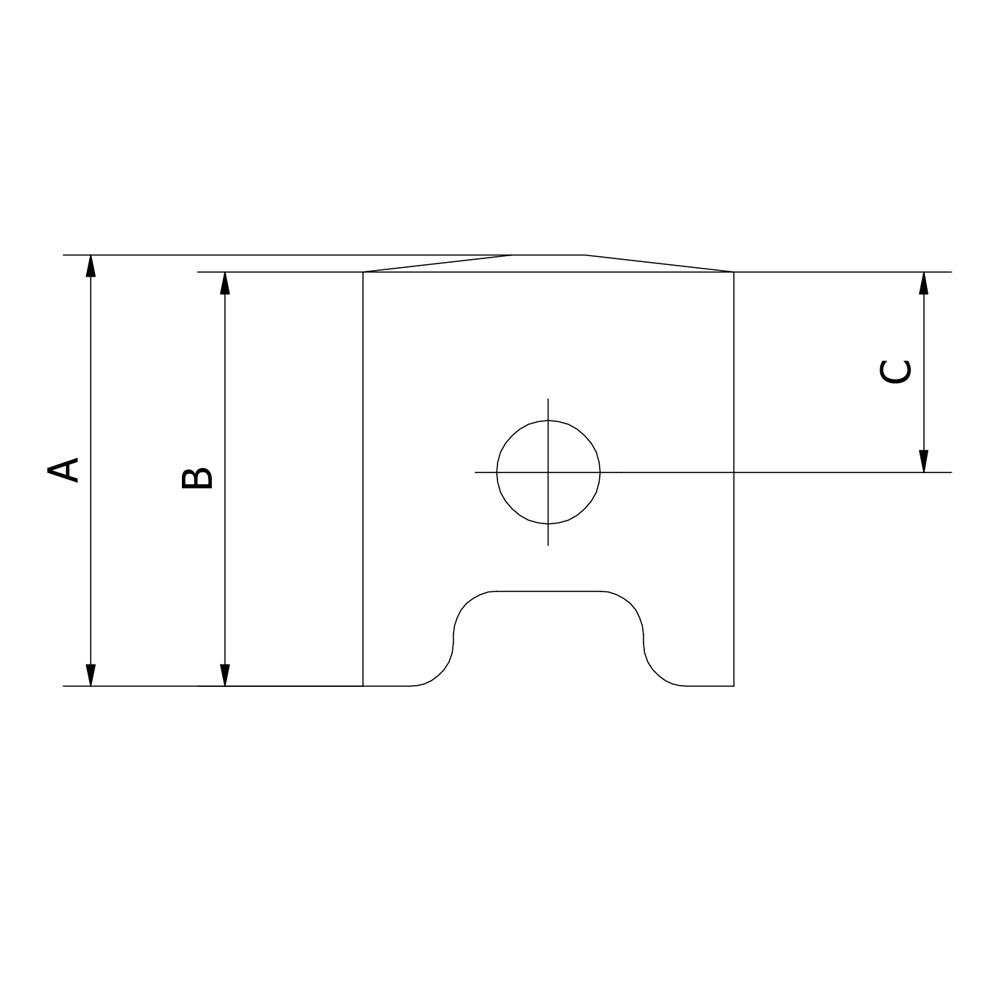

Dimension A: ~53mm
Dimension B: ~50mm
Dimension C: ~28mm

For Sachs 502/1 engines with horizontal cylinder.

All
NTS pistons are of very high quality and are always manufactured in
Taiwan, in a factory with over 50 years of experience in piston
manufacturing according to NTS’s own manufacturing documents and CAD
drawings.

Specifikation

SKU:	04-32-302
Kategori	Engine Moped Parts Piston Piston & Pistonrings

Weight	0,1 kg
Original number	0286 373 008
Trademark	NTS
Standard Unit	Kit

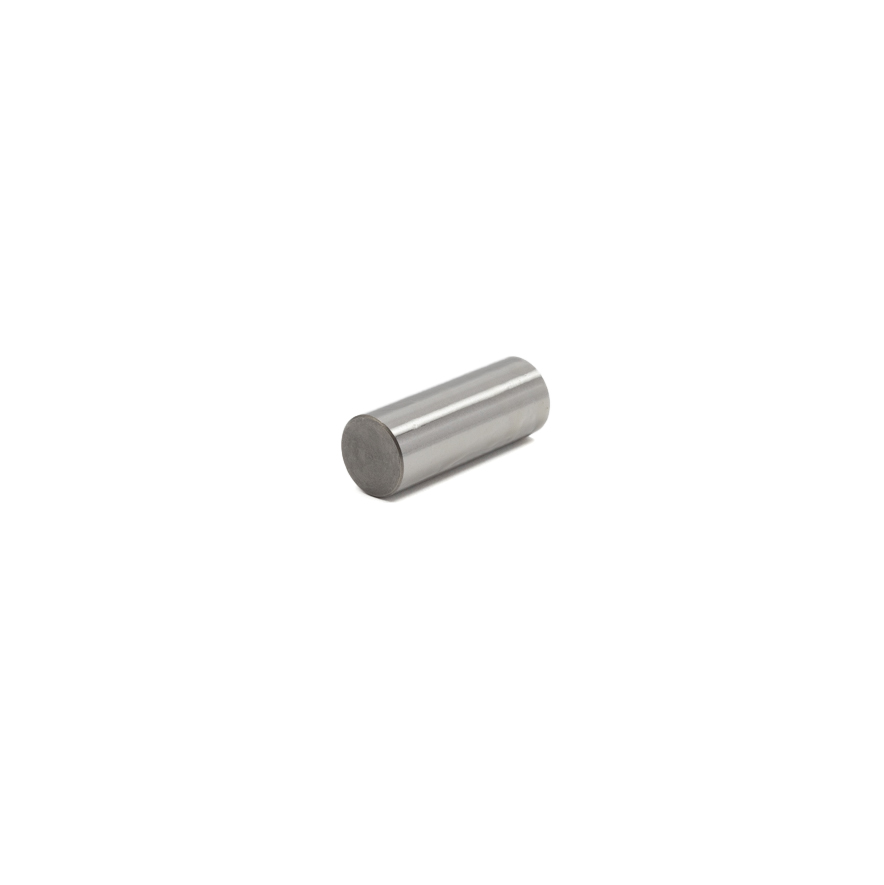

Additional Info	Contains: 1pc. Piston 38,6mm 2pcs. Piston Ring 38,6x2mm 1pc. Piston Pin 12x32mm closed 2pcs. Clip for piston pin 12mm (01-11-504) The piston must be oiled during assembly and don't forget to check the needle bearing! For the longest possible durability and lifetime, the piston should be "driven in" during the first approx. 200 kilometers. Pistons marked with an arrow, the direction of the arrow must be towards the exhaust port. Pistons marked with IN must be against the intake.

Produkten passar till

Hercules

Citybike CB1/CB2 (Sachs 502)
L50/Extra/Luxus (Sachs 502)
MF1/MF2/MP1 (Sachs 502)

Hobby (Sachs 502) 1968-1972

Rex (Sweden)

Miniped (Sachs 502)
Miniped MK2 (Sachs 502)

Sachs

Sparta

Happy 502 (Sachs 502/1A NL)
