Mounting set, fuel tank NTS for Puch MS50/VS50/MV50/DS50

Mounting kit for securing the fuel tank on Puch. The kit contains all necessary components for correct and stable installation according to the original design.

Suitable for restoration work, fuel tank replacement, or as a replacement for worn or missing original parts. Ensures proper fitment and reduces vibrations between the frame and the tank.

Specifications:

  • Type: Fuel tank mounting kit
  • Function: Securing the fuel tank to the frame
  • Design: Replacement part / restoration part
  • Installation: Bolt-on; on some models the tank bolt is riveted – in this case, the rivet must be removed.

Primarily suitable for:

Puch MS50, VS50, MV50, DS50

Specification

SKU:
17-69-301
Category
Weight 0,07 kg
Original number

350.1.22.010.1 / 050.10.2224 / 900.2106 / 900.3904 / 350.2.22.033.1 / 050.10.2206 / 350.2.22.007.1
Trademark

NTS Premium Parts
Standard Unit

Set
Additional Info

Technical information:

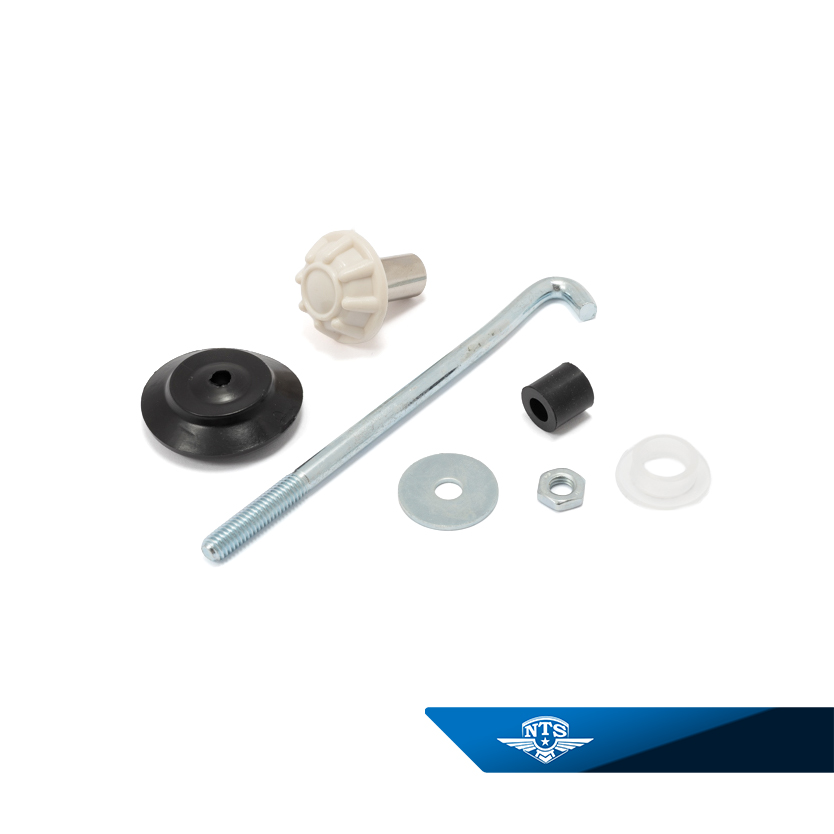

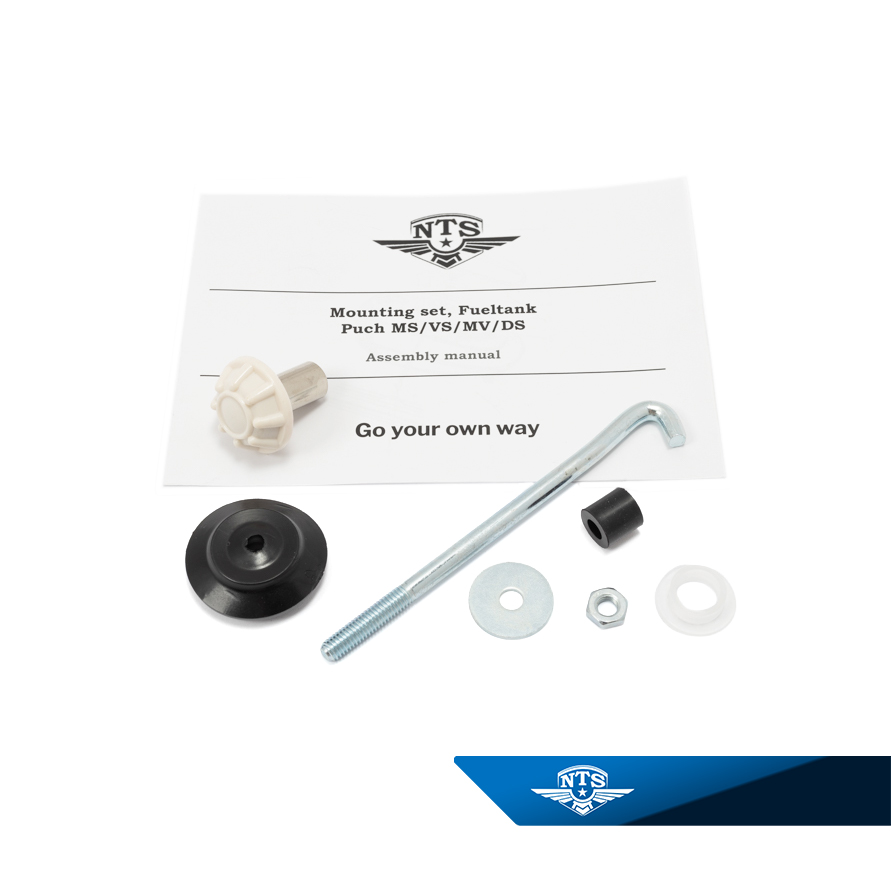

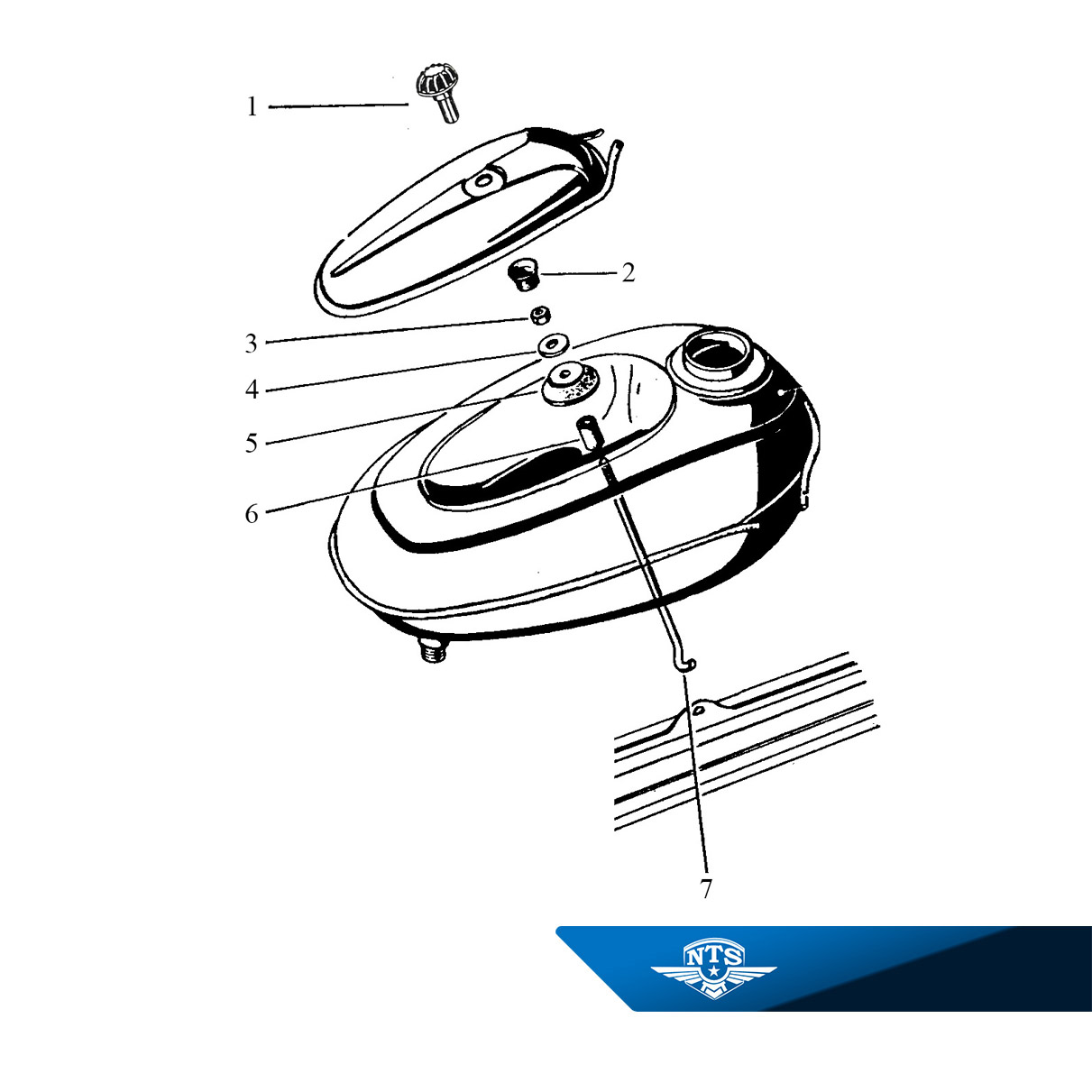

  • Includes: Tank bolt, rubber sleeve, pressure plate, washer, nut, clamp ring, nut for tool compartment cover (items 1–7 according to image 2).
  • Total length, tank bolt: 116 mm
  • Thread: M6

    The product is suitable for

    • Puch
      • DS50
      • MS50
      • MV50
      • VS50
