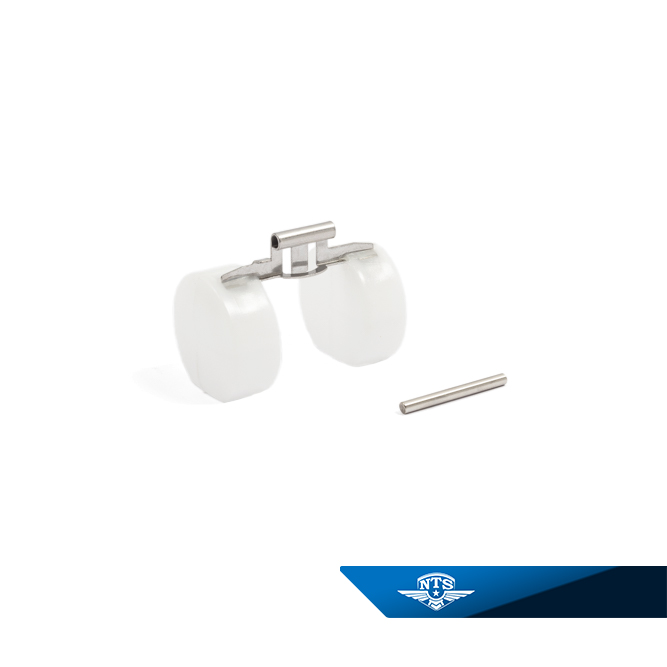

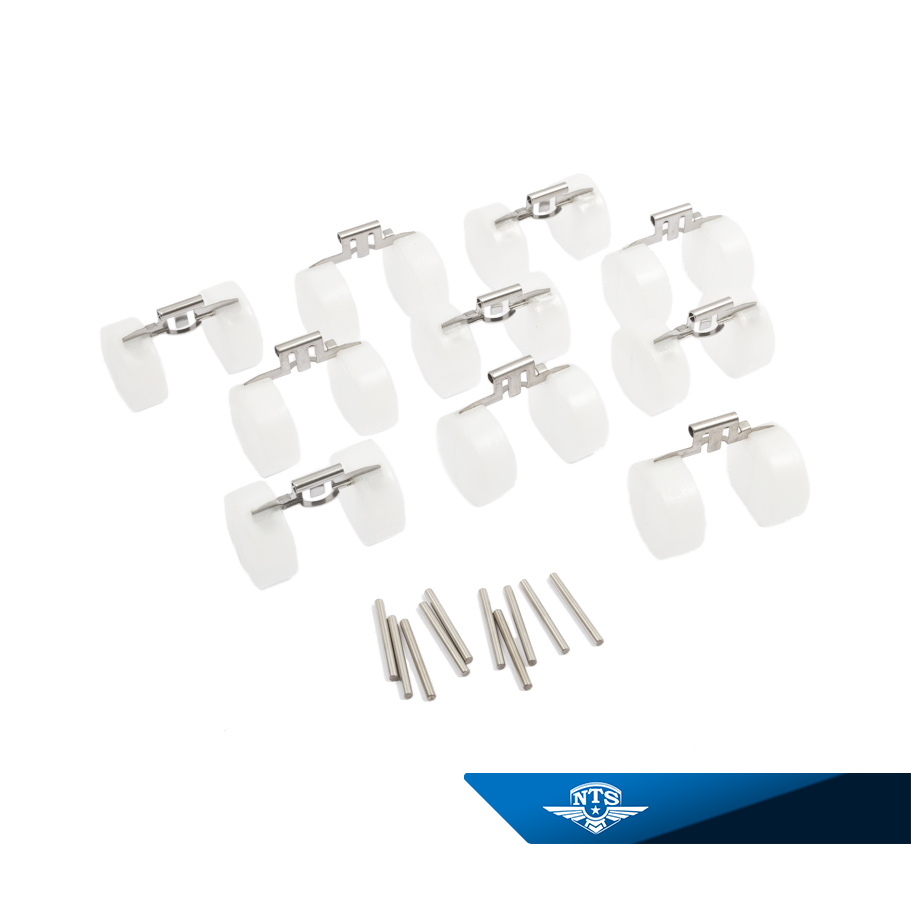

Float with pin NTS for Mikuni VM10/12/14/16 (10-pack)

Intended for the following Mikuni carburetors:

  • VM10/12/14/16SC for Suzuki K50 (with throttle slide Ø = 16 mm)
  • VM10/12/14/16SC for Suzuki/Yamaha (with throttle slide Ø = 17 mm)
  • VM16SH for Yamaha DT/RD/TY / Suzuki GT50, RM50C

Also fits the following NTS carburetors:

  • 01-24-201 NTS-VM16SH
  • 06-64-101 NTS-VM16SC

Specification

SKU:
01-23-830
Category
Weight 0,09 kg
Trademark

NTS Premium Parts
Standard Unit

10-Pack
Additional Info

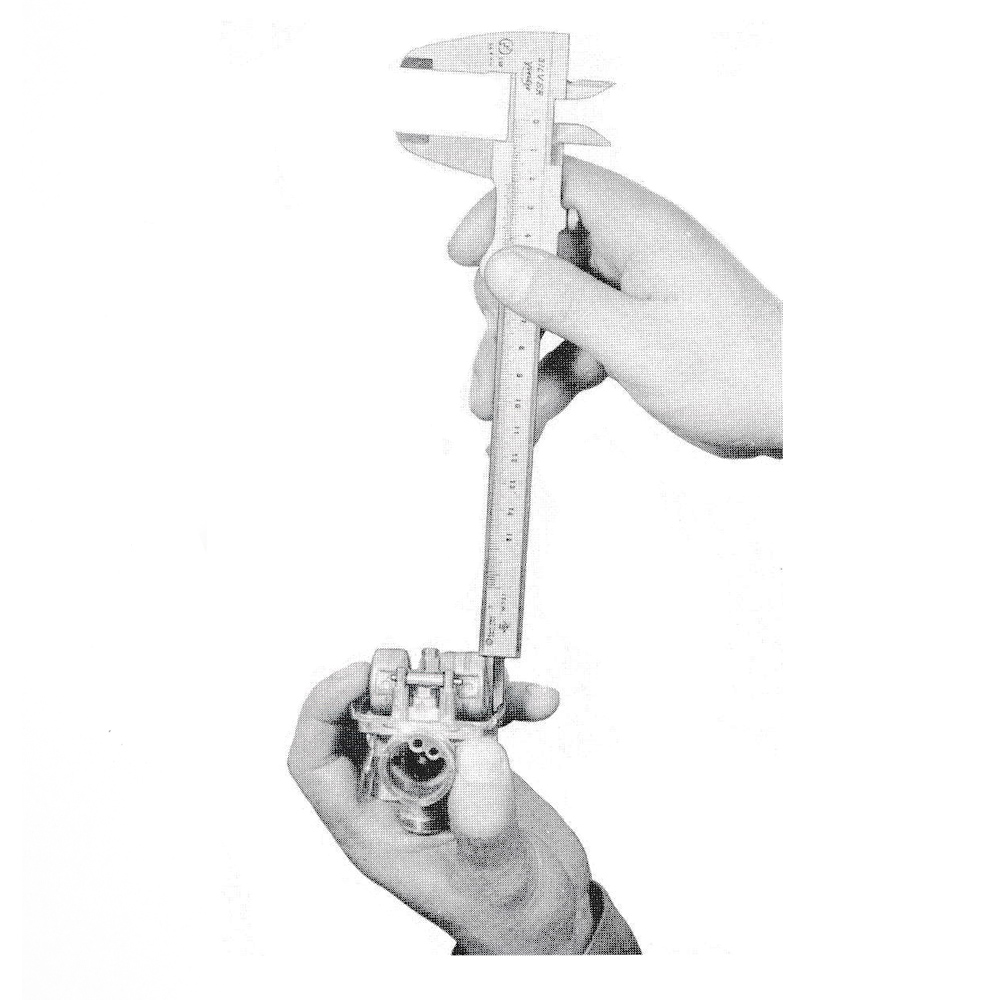

The float level must be adjusted to the dimensions specified below. This is done primarily by bending the float tab upward or downward, and secondly — if the adjustment range of the tab is insufficient — by slightly bending the entire metal bracket holding the floats to allow more room for fine adjustment via the tab. See picture 2 for how to easily measure the level using a standard caliper!


VM10/12/14/16SC = 22.5 (±0.5 mm)

VM16SH = 21.5 (±0.5 mm)
Array

    The product is suitable for

    • Suzuki
      • A50 (1971)
      • A50-II/A50L (1972~74)
      • A50K B/DB (1977~78)
      • A50KM E22/E39 (1975~76)
      • A50M (1975~76)
      • A50P (1975-78)
      • AC50/AC50L (1971~74)
      • AC50B/DB (1977~78)
      • AC50M (1975~76)
      • AC50N/DN (1978-)
      • AS50 (1971)
      • F50/-2/-3/-4
      • GT50K/P (B/EB/UB/N/EN)
      • K10/K11/K15 80CC (~1969)
      • K50
      • K50-I (1970)
      • K50-II/K50K/K50L (1971~1974)
      • K50B/DB (1977~78)
      • K50M (1975~76)
      • K50N/DN (1978~82)
      • K50Z/DZ (1983-)
      • M12/M15 50CC (-1969)
      • M30/M31
      • MT50R/J/K Trailshopper (1971~73)
      • OR50
      • PV50 Trailshopper (1979~91)
      • RM50 C/N/T/X/Z
      • RV50A/C (1977-)
      • RV50K/L (1972~74)
      • RV50M (1975~76)
      • TS50ER (1979-83)
      • TS50X (1984-00)
      • ZR50K
      • ZR50SK
      • ZR50SL
    • Yamaha
      • BOP_LB3
      • Chappy LB50/LB2
      • DT50M
      • FS80
      • RD50M
      • TY50
