Crank Shaft Compl. NTS for Sachs 50/A (Electric start)

High-quality crankshaft final inspected and finely calibrated (aligned) in Sweden.

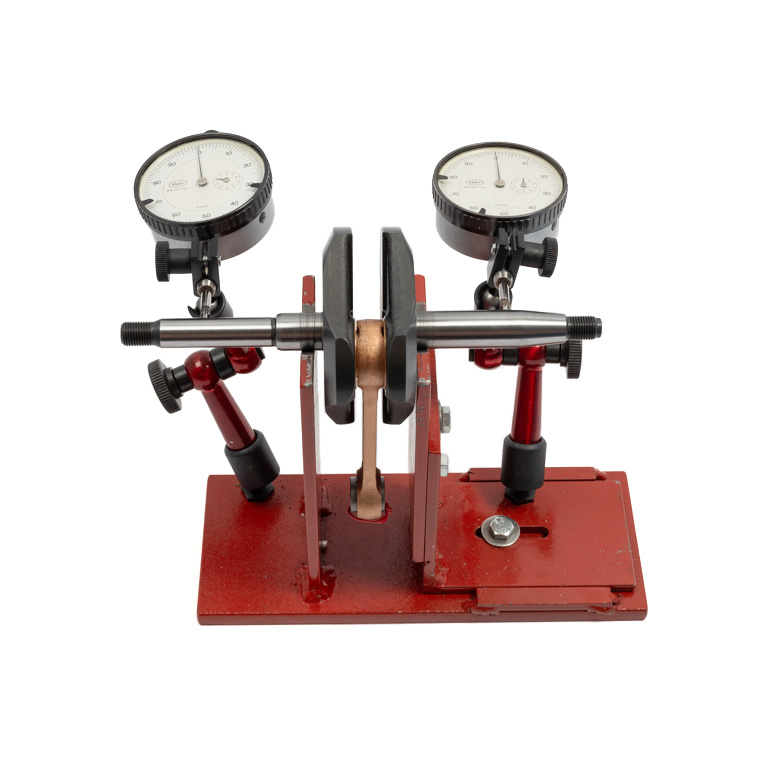

  • Balance between the halves (pic.3): max run out= <0.03/side.

In the weight ratio, very well balanced crankshaft for optimal function and very little vibration, especially when used together with NTS pistons.

Supplied complete with needle bearing for the piston pin.

Specification

SKU:
18-51-601
Category
Weight 1,126 kg
Original number

0288 107 209

Trademark

NTS

Manufacturer

NTS

Additional Info

Technical data:

  • Needle bearing: 12x15x14(for 12mm piston pin NTS: 01-11-303)
  • Cone for flywheel: Conicity 1:5 (entry diameter ~12mm)
  • Thread transmission side: M10x1
  • Woodruff key, fly-wheel: 3×3,7 (NTS: 01-38-701)
  • Stroke: 42mm


Fits models with electric start.
50/ADL X, 50/AMAL X, 50/AMLR S, 50/AMLR X

    The product is suitable for

    • Sachs
      • 50/A, 50/2
