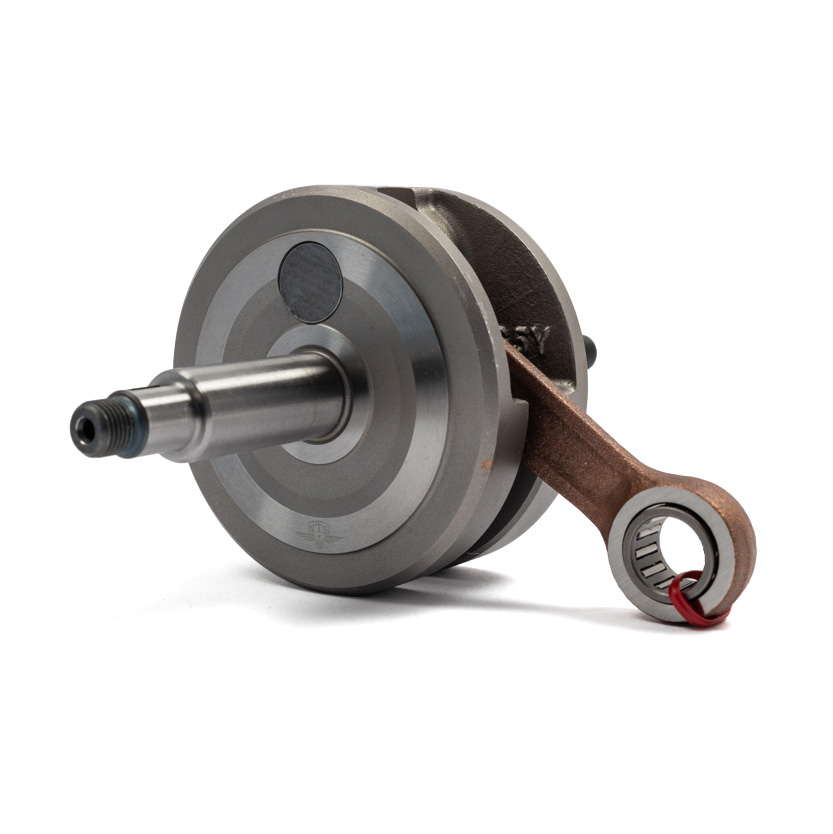

Crank Shaft Compl. NTS for Sachs 501/BKF

High-quality crankshaft final inspected and finely calibrated (aligned) in Sweden.

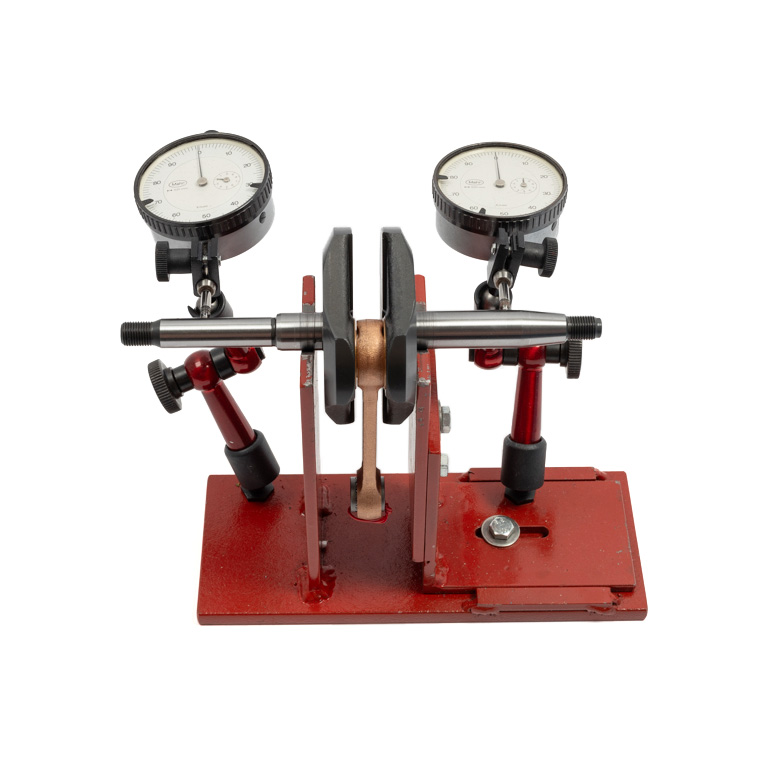

  • Balance between the halves (pic.3): max run out= <0.03/side.

In the weight ratio, very well balanced crankshaft for optimal function and very little vibration, especially when used together with NTS pistons.

Supplied complete with needle bearing for the piston pin.

Specification

SKU:
18-51-701
Category
Weight 1,45 kg
Original number

0288 101 001

Trademark

NTS

Standard Unit

Pcs

Additional Info

Technical data:

  • Needle bearing: 14x18x13 (for 14mm piston pin NTS: 01-11-306)
  • Cone for flywheel: Conicity 1:5 (entry diameter ~12mm)
  • Thread flywheel side: M10x1 left-handed threaded.
  • Thread transmission side: M10x1
  • Woodruff key, fly-wheel: 3×3,7 (NTS: 01-38-701)
  • Woodruff key, drive gear: 3×3,7 (NTS: 01-38-701)
  • Stroke: 44mm


Fits the following engines:
Sachs 501/3BF, 501/3BKF, 501/4BF, 501/4BKF

    The product is suitable for

    • Sachs
      • 501
