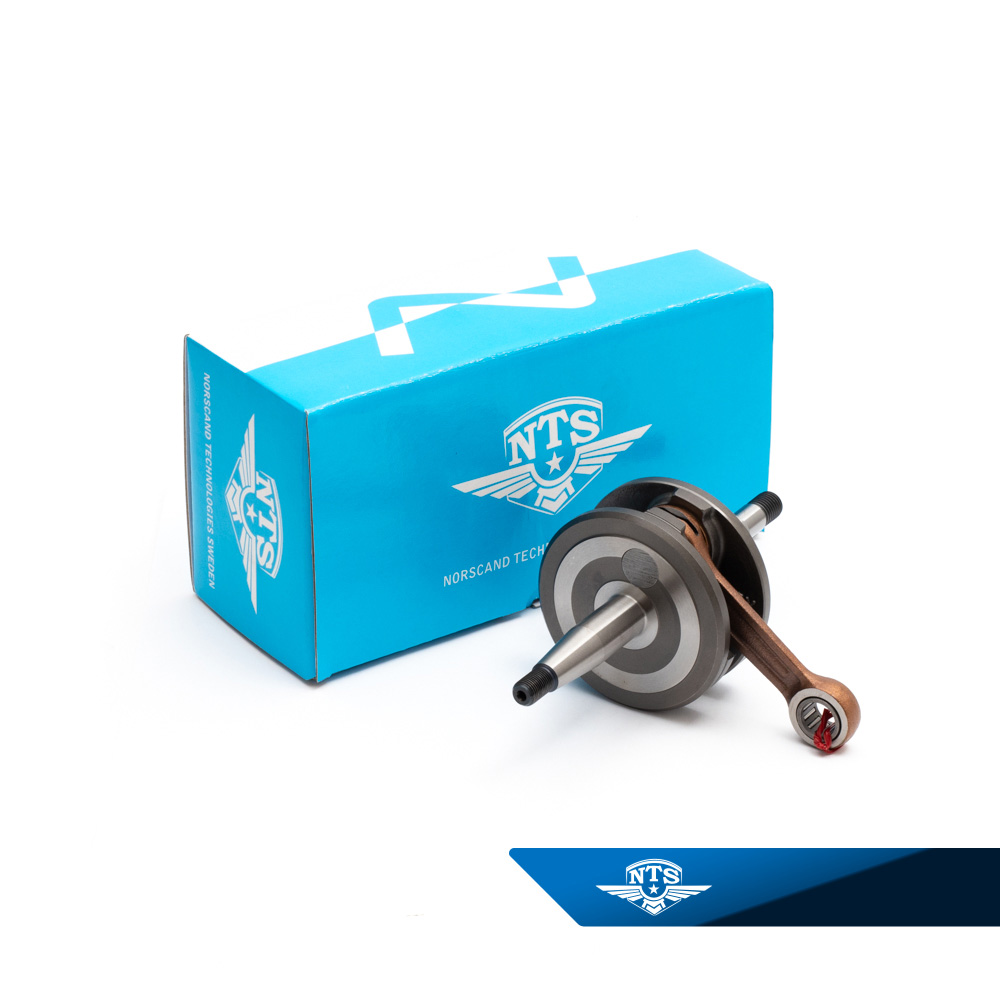

Crank Shaft Compl. NTS for Sachs 506/4

High-quality crankshaft final inspected and finely calibrated (aligned) in Sweden.

  • Balance between the halves (pic.3): max run out= <0.03/side.

In the weight ratio, very well balanced crankshaft for optimal function and very little vibration, especially when used together with NTS pistons.

Supplied complete with needle bearing for the piston pin.

Specification

SKU:
17-44-101
Category
Weight 1,5 kg
Original number

0288 101 402 (0288 101 302)

Trademark

NTS

Standard Unit

Pcs

Additional Info

Technical data:

  • Needle bearing: 14x18x13 (for 14mm piston pin NTS: 01-11-306)
  • Cone for flywheel: Conicity 1:5 (entry diameter ~12mm)
  • Thread flywheel side: M10x1 left-handed threaded.
  • Thread transmission side: M12x1,5
  • Woodruff key, fly-wheel: 3×3,7 (NTS: 01-38-701)
  • Woodruff key, drive gear: 3×3,7 (NTS: 01-38-701)
  • Stroke: 44mm

    The product is suitable for

    • Sachs
      • 506
