Crank Shaft Compl. NTS for Sachs 2/3g. handg.

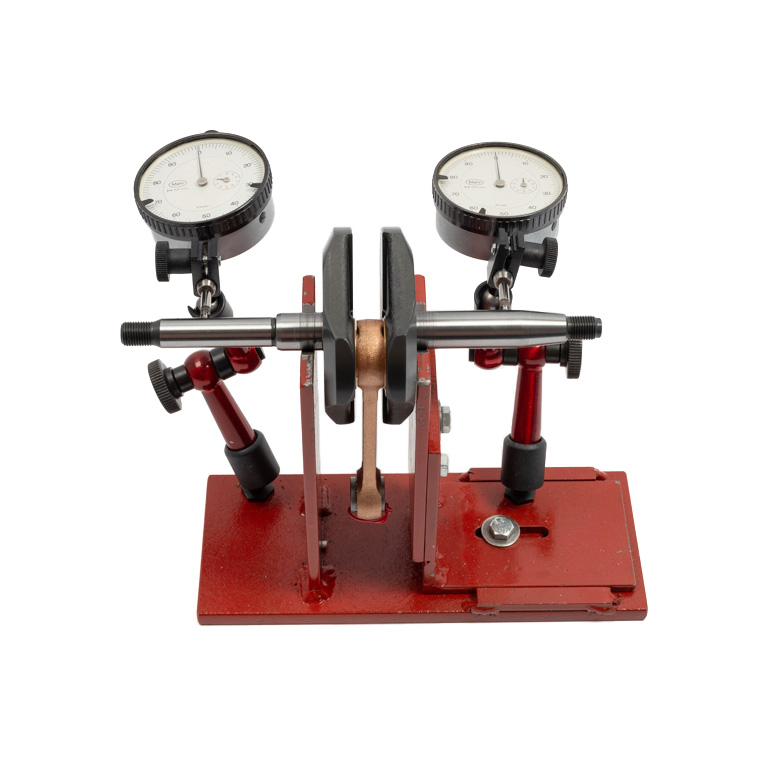

High-quality crankshaft final inspected and finely calibrated (aligned) in Sweden.

  • Balance between the halves (pic.3): max run out= <0.03/side.

In the weight ratio, very well balanced crankshaft for optimal function and very little vibration, especially when used together with NTS pistons.

Supplied complete with needle bearing for the piston pin.

Specification

SKU:
02-36-401
Category
Weight 1,039 kg
Original number

0286 139 400
Trademark

NTS
Standard Unit

Pcs
Additional Info

Technical data:

  • Needle bearing: 12x15x14 (for 12mm piston pin NTS: 01-11-303)
  • Cone for flywheel: Conicity 1:5 (entry diameter ~12mm)
  • Thread flywheel side: M10x1
  • Thread transmission side: M10x1
  • Woodruff key, fly-wheel: 3×3,7 (NTS: 01-38-701)
  • Woodruff key, drive gear: 3×3,7 (NTS: 01-38-701)
  • Stroke: 42mm


Fits the following engines:

50/2 MB, 50/2 MLB, 50/2 MA NL, 50/2 MLC, 50/2 MA SF,
50/2 MAK SF, 50/2 MA X, 50/2 MLA X, 50/2 DK, 50/2 S, 50/2 KS, 50 K DK, 50/2 D NL 50/2 C

50/3 MB, 50/3 LS, 50/3 MA I, 50/3 MA NL, 50/3 MA SF, 50/3 MAK SF, 50/3 MA X, 50/3 MKA I, 50/3 MK X

    The product is suitable for

    • Sachs
      • 50/2 MA (NL/SF/X) MB, S, DK, C, D (NL)
      • 50/2 MAK (SF), K (S, DK)
      • 50/2 MLA, MLB, MLC
      • 50/3 H
      • 50/3 L (S)
      • 50/3 MA (I, NL, SF, X) MB
      • 50/3 MK (X), MAK (SF), MKA (I)
