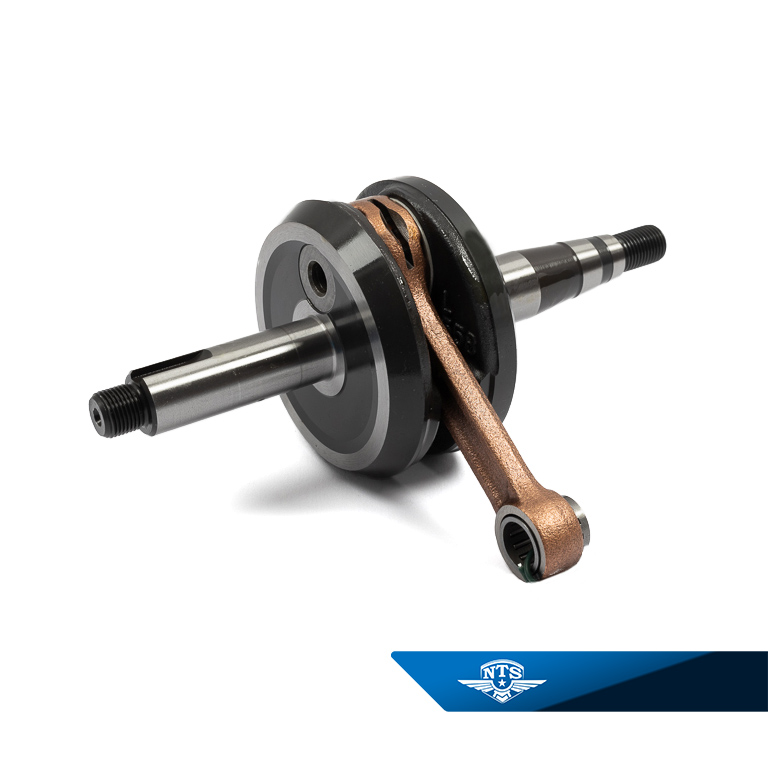

Crank Shaft Compl. NTS for Yamaha FS1

High-quality crankshaft final inspected and finely calibrated (aligned) in Sweden.

  • Balance between the halves (pic.3): max run out= <0.03/side.

In the weight ratio, very well balanced crankshaft for optimal function and very little vibration, especially when used together with NTS pistons.

Supplied complete with needle bearing for the piston pin.

Specification

SKU:
02-36-102
Category
Weight 1,312 kg
Original number

355-11400-01

Trademark

NTS

Standard Unit

Pcs

Additional Info

Technical data:

  • Needle bearing: 12x15x16 (for 12mm piston pin NTS: 01-11-305)
  • Cone for flywheel: Conicity 1:6 (entry diameter ~13,5mm)
  • Thread flywheel side: M12x1,25
  • Thread transmission side: M12x1
  • Woodruff key, fly-wheel: 3x5mm (NTS: 01-38-702)
  • Stroke: 40mm

    The product is suitable for

    • Yamaha
      • FS1
      • FS1-DX
      • FS1-SE
