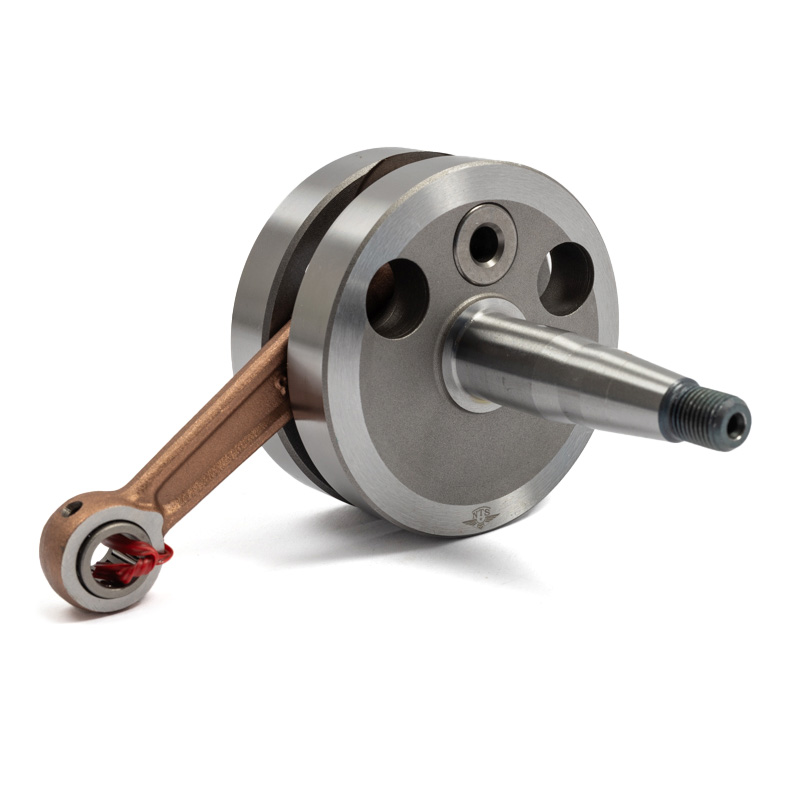

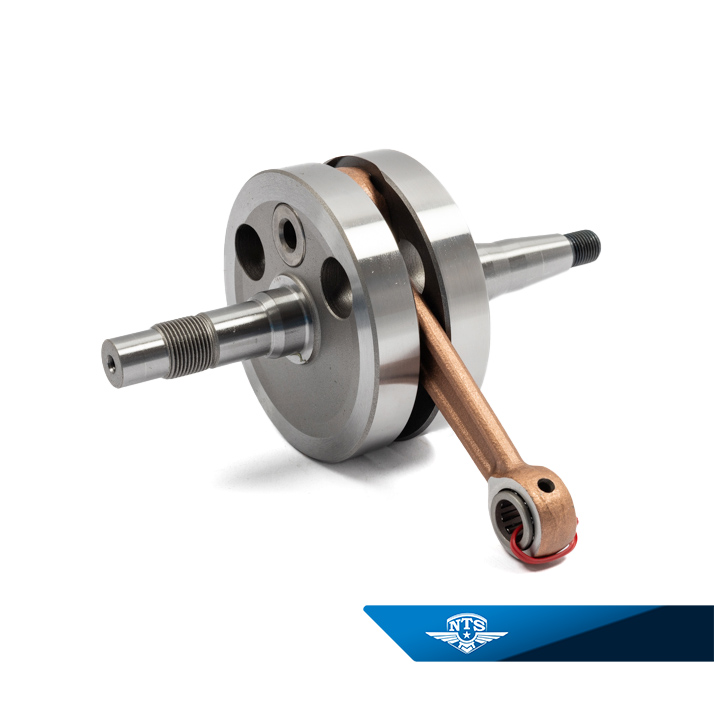

Cranc shaft compl. NTS for Tomos 3/4/5-gear

High-quality crankshaft final inspected and finely calibrated (aligned) in Sweden.

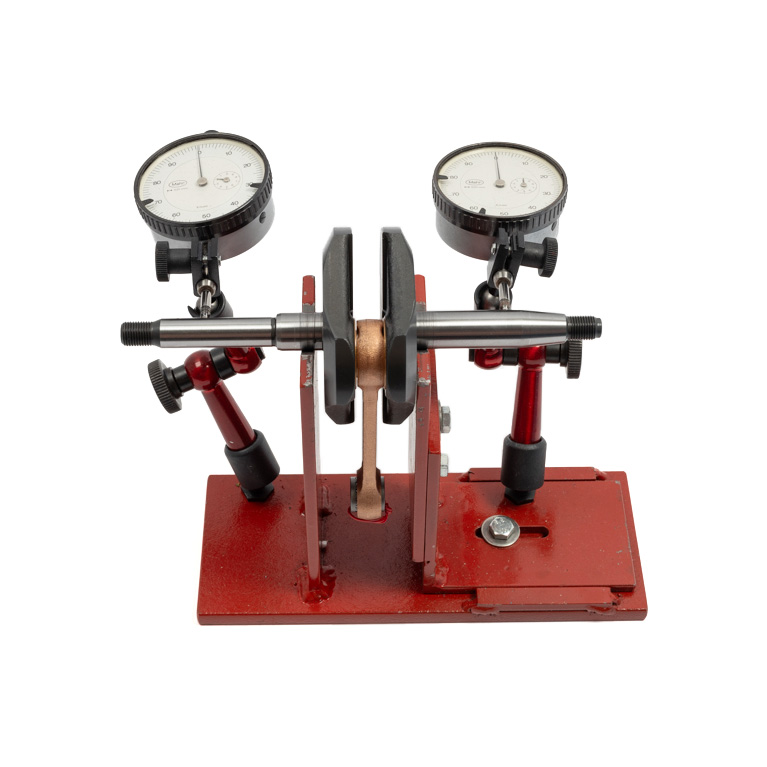

  • Balance between the halves (pic.3): max run out= <0.03/side.

In the weight ratio, very well balanced crankshaft for optimal function and very little vibration, especially when used together with NTS pistons.

Supplied complete with needle bearing for the piston pin.

Specification

SKU:
02-35-801
Category
Weight 1,1 kg
Original number

205.611

Standard Unit

Pcs

Additional Info

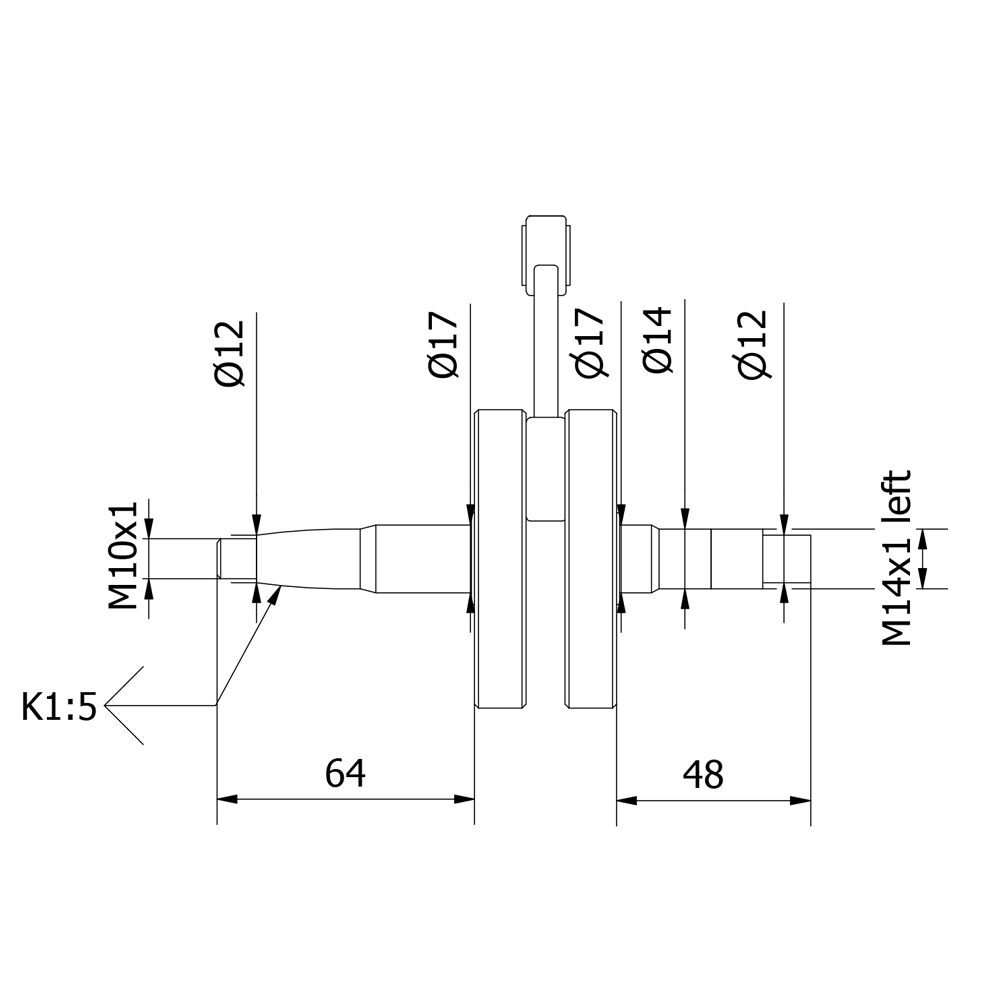

Technical data:

  • Needle bearing: 10x14x13 (for 10mm piston pin NTS: 13-55-101)
  • Cone for flywheel: Conicity 1:5 (entry diameter ~12mm)
  • Thread flywheel side: M10x1
  • Thread transmission side: M14x1 left threaded
  • Woodruff key, fly-wheel: 3×3,7 (NTS: 01-38-701)
  • Stroke: 44mm

    The product is suitable for

    • Solifer
      • GT 1980-1981
      • SM50 1974-1976
      • SM50 1977-1986
      • SMA 1976-1979
      • Speed 4g 1970-1973
      • TS50 1981-1983
      • TS50 S 1983-
    • Tomos
      • 14 TLC/TL
      • 15 Sprint/SLC
      • 4L (Tomos 4g) (NL)
      • APN-4 (Tomos 4g)
      • APN-6 (Tomos 4g)
      • ATX/NTX (Tomos 5g)
      • BT50 (Tomos 5g)
      • Colibri 14 (Tomos 4g)
      • Colibri 15 (Tomos 5g)
      • Colibri A-ON (Tomos 4g)
      • GT (Tomos 4g) 1968- (SE)
      • GT Mark 2 (Tomos 4g) 1969- (SE)
      • TS50 (Tomos 3g) (SE)
      • Trip 1968- (SE)
