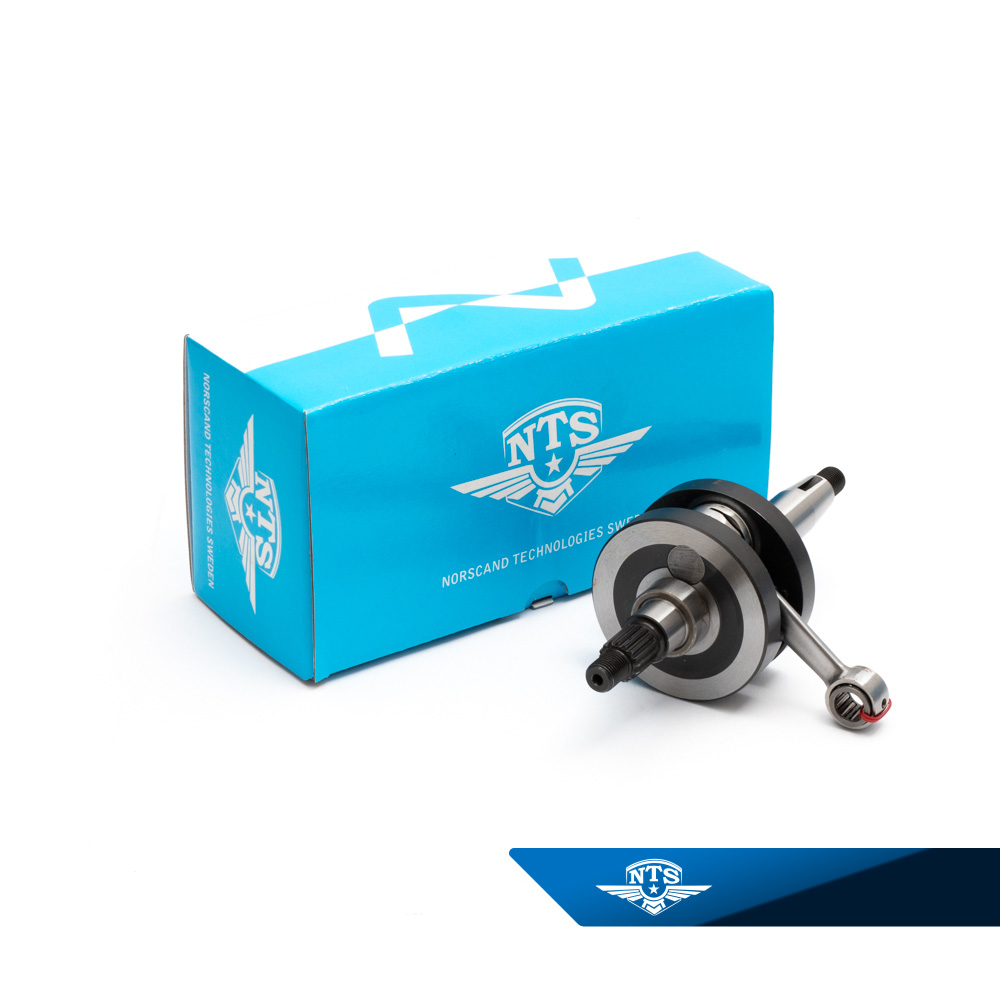

Crank Shaft Compl. NTS for Honda MT50/MB50

High-quality crankshaft final inspected and finely calibrated (aligned) in Sweden.

  • Balance between the halves (pic.3): max run out= <0.03/side.

In the weight ratio, very well balanced crankshaft for optimal function and very little vibration, especially when used together with NTS pistons.

Supplied complete with needle bearing for the piston pin.

Specification

SKU:
02-35-101
Category
Weight 1,584 kg
Original number

13000-166-010

Trademark

NTS

Standard Unit

Pcs

Additional Info

Technical data:

  • Needle bearing: 12x17x14 (for 12mm piston pin NTS: 01-11-301)
  • Cone for flywheel: Conicity 1:5 (entry diameter ~16mm)
  • Thread flywheel side: M12x1,25
  • Thread transmission side: M12x1,25
  • Woodruff key, fly-wheel: 4x4mm (NTS: 01-38-703)
  • Stroke: 42mm

    The product is suitable for

    • Honda
      • MB50
      • MT50
