Clutch Plates Newfren for Honda MB/MT50

Clutch Plate Set from Newfren for Honda MB50/MT50.

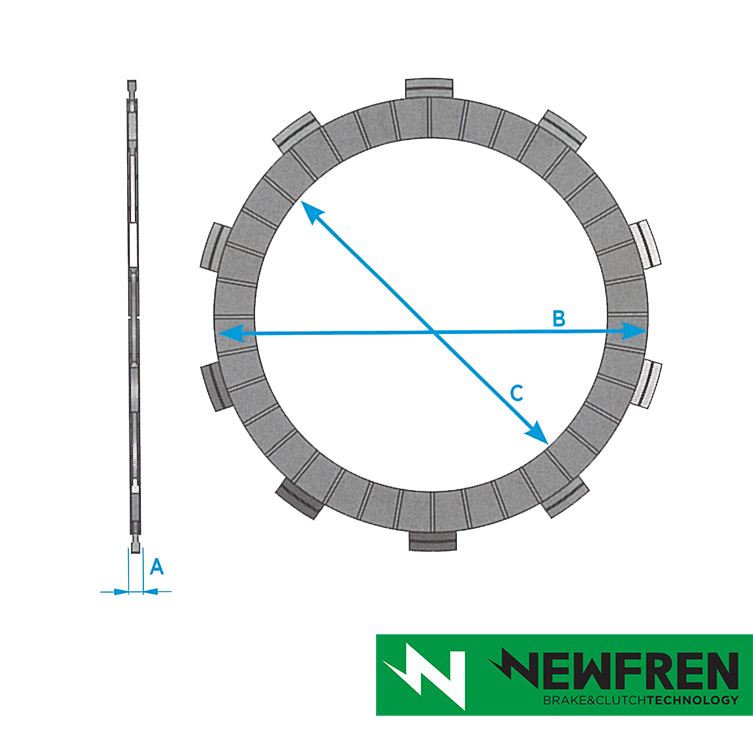

For reference regarding dimensions, see image two.

Please note that image two is a generic illustration and does NOT represent the actual clutch plate.

Specifications:

  • Number of teeth: 8
  • A dimension: 3mm
  • B dimension: 110mm
  • C dimension: 91mm
  • Number of clutch plates: 3
  • Plate type: Steel

Specification

SKU:
77-11-103
Category
Weight 0,086 kg
Original number

22201-166-000

Trademark

Newfren

Standard Unit

Set

Additional Info

Note:

When replacing the clutch plates, we recommend checking the steel plates to ensure maximum durability of the clutch plates.

    The product is suitable for

    • Honda
      • MB50
      • MT50
