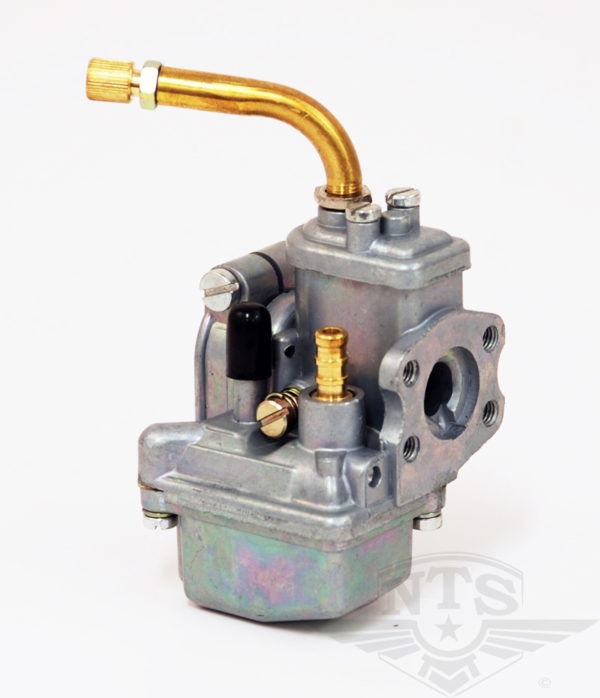

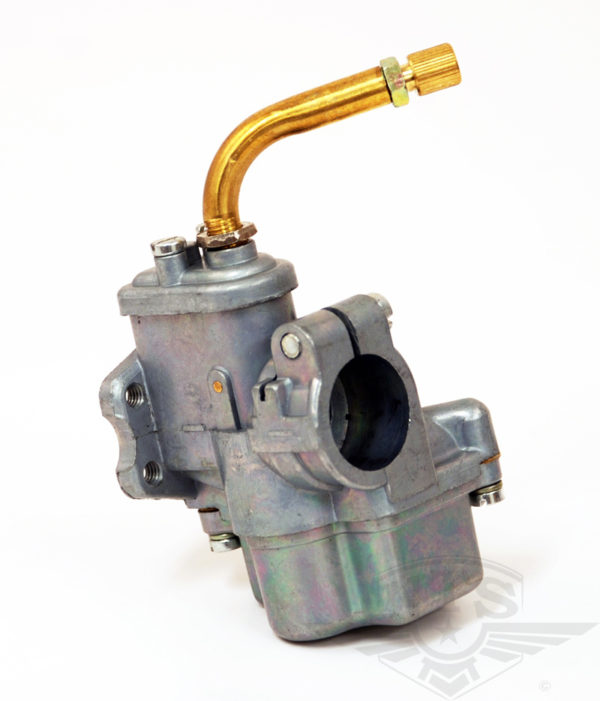

Carburetor 12mm NTS-Type 85 for Sachs 504/505/506

Complete 12 mm carburetor, primarily intended for mopeds equipped with Sachs 504/505/506 engines.

Specification

SKU:
01-81-401
Category
Weight 0,3 kg
Trademark

NTS
Standard Unit

Pcs
Additional Info

Technical information:

  • Supplied with main jet size: 52 (Thread: M4) (NTS Part No. 01-23-911/912/913/914)
  • Cylinder connection Ø: 20mm
  • Bore Ø: 12mm
  • Fuel hose connection: Top entry
  • Throttle cable connection: Adjuster and cable elbow
  • Thread for air cleaner: M5
Array

    The product is suitable for

    • DBS
      • Handy 2610 (Sachs 505/2AKS)
      • Hercules 2635 (Sachs 504/1BS)
    • Hercules
      • Hobby Rider HR2 (Sachs 505/2 B)
      • Jogging (Sachs 505/2)
      • M1/M2/M3/P1 (Sachs 504)
      • MODEL_CITYBIKEC1
      • MX1 (Sachs 505/2)
      • PRIMA_2N
      • Prima 2S/M4/4/4S/4N (Sachs 505/1)
      • Prima 3S/M5/M5S/5/5S/5N/6 (Sachs 505/2)
      • Prima 4SL/5SL (Sachs 505/1-505/2)
      • Prima 5SX (Sachs 505/3)
      • Prima P3/Optima 3/3S (Sachs 505/2)
      • Supra 2D/3D (Sachs 505/2-505/3)
    • KTM
      • Hobby/Foxi/505/L/LS (Sachs 504/505) 1974-
      • Pony/505/S/SS/SL/SB/Cross (Sachs 505)
    • Rixe
      • Champion FT/FTH 1976- (Sachs 505/1B-2B)
      • High Sport 1976- (Sachs 505/2B)
      • Libelle FT/FTH/GTH 1973-1975 (Sachs 504/1)
      • Libelle GTH 1976- (Sachs 505/2B)
      • Tourismo E/EL/ELS 1976- (Sachs 505/2B)
    • Sachs
      • 504/1
      • 505/1
      • 505/2
      • 505/3
      • 506
    • Sparta
      • Easy (Sachs 505/1-505/2)
      • Tour 505 (Sachs 505/1)
    • Tempo
      • Handy 090 (Sachs 505/2)
      • Hercules 010 (Sachs 504/1)
    • Transportmoped
      • MCB 1188/1198
      • Norsjö Carrier 1187/1197
