Brake shoe set NTS for Victoria B90

Brake shoe set in aluminum incl. spring.


Performance:

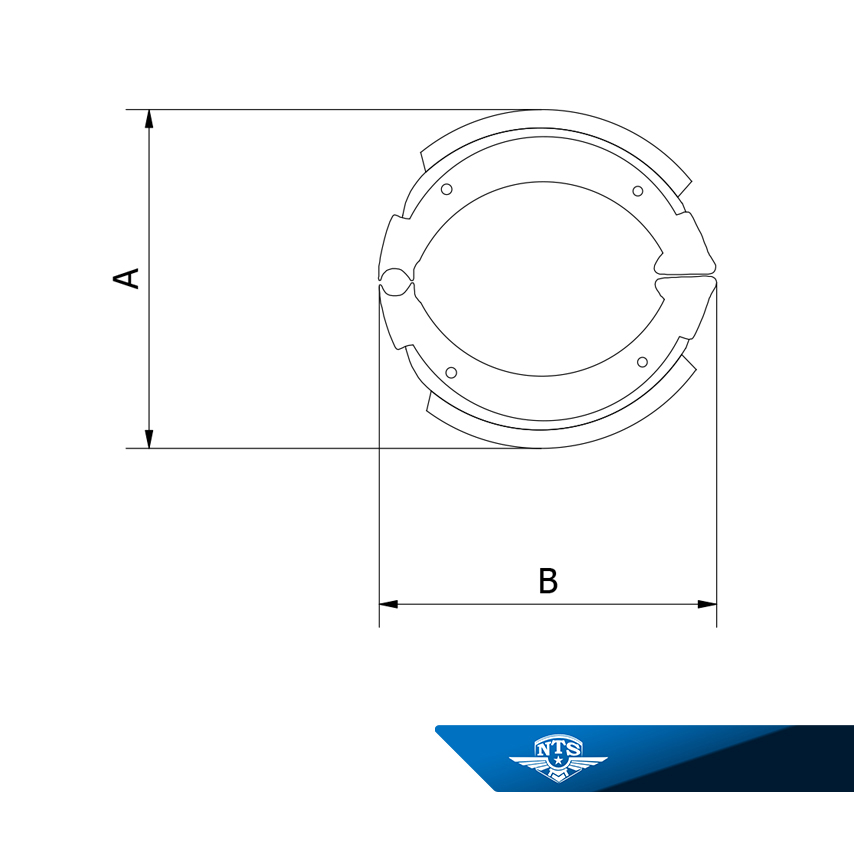

  • Dimension A: 84mm
  • Dimension B: 84mm
  • Width: 20mm
  • Fits brake drum with Ø = 90mm
  • Hub manufacturer: Victoria


Fits:
Model 112, 113, 123 Hummel Standard
Model 117 Vicky Standard
Model 106 Avanti
Model 107 Super Luxus
Vicky IV

Specification

SKU:
01-42-701
Category
Weight 0,1 kg
Original number

Victoria: 5040 K5 / 5040 K7 / 5040 K10 Zweirad Union: 900 020 63 50
Trademark

NTS
Standard Unit

Set
Manufacturer

NTS
Additional Info

Fits Victoria B90 mm hub with original part numbers:

Victoria: 5220 K10, K11, K27, K30

With brake shield:

Victoria: 2791 K7, K8, K12

Zweirad Union: 900 034 01 50 & 900 024 01 51



NTS brake shoes are measured with the heels facing each other.

    The product is suitable for

    • Victoria -1960
      • Avanti 106
      • Preciosa RM51
      • Vicky 3N
      • Vicky IV
      • Vicky Luxus
      • Vicky Super-Luxus 107
    • Zweirad Union (DKW/Victoria/Express)
      • DKW Hummel Standard 112
      • DKW Hummel Standard 113
      • Victoria Vicky Standard/Super 117/126/156
