Piston Set 41/12mm NTS for Suzuki K50

Performance:

  • For 41mm cylinder
  • Dimension A: ~51,5mm
  • Dimension B: ~48,5mm
  • Dimension C: ~27mm

Fits NTS Cylinders:
04-64-101 Cylinder Set Suzuki K50

All NTS pistons are of very high quality and are always manufactured in Taiwan, in a factory with over 50 years of experience in piston manufacturing according to NTS’s own manufacturing documents and CAD
drawings.

Specifikation

SKU:
01-15-403
Kategori
Weight 0,1 kg
Original number

12110-46103 / 12140-46110
Trademark

NTS
Standard Unit

Kit
Additional Info

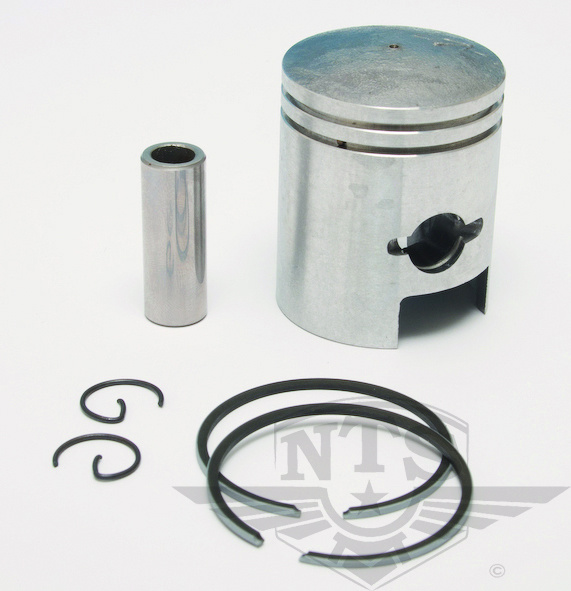

Contains:

  • 1pc. Piston 41mm
  • 2pcs. Piston Ring 41×1,5mm beveled (01-76-501)
  • 1pc. Piston Pin 12x34mm
  • 2pcs. Clip for piston pin 12mm (01-11-504)
Remember to turn the beveled piston rings in the right direction.
If an oil ring is included, it can be fitted in the lower piston ring groove.

The piston must be oiled during assembly and don't forget to check the needle bearing!
For the longest possible durability and lifetime, the piston should be "driven in" during the first approx. 200 kilometers.

*Pistons marked with an arrow, the direction of the arrow must be towards the exhaust port.
*Pistons marked with IN must be against the intake.

    Produkten passar till

    • Suzuki
      • K50
      • TS50X
