Piston Set 38,2/12mm NTS for Piaggio Ciao

Performance:

  • For 38,2mm cylinder
  • Dimension A: ~52mm
  • Dimension B: ~48,5mm
  • Dimension C: ~26mm

Fits NTS Cylinders:
61-24-501 Cylinder Set Piaggio Ciao

All NTS pistons are of very high quality and are always manufactured in Taiwan, in a factory with over 50 years of experience in piston manufacturing according to NTS’s own manufacturing documents and CAD
drawings.

Specifikation

SKU:
01-73-301
Kategori
Weight 0,082 kg
Trademark

NTS
Standard Unit

Kit
Additional Info

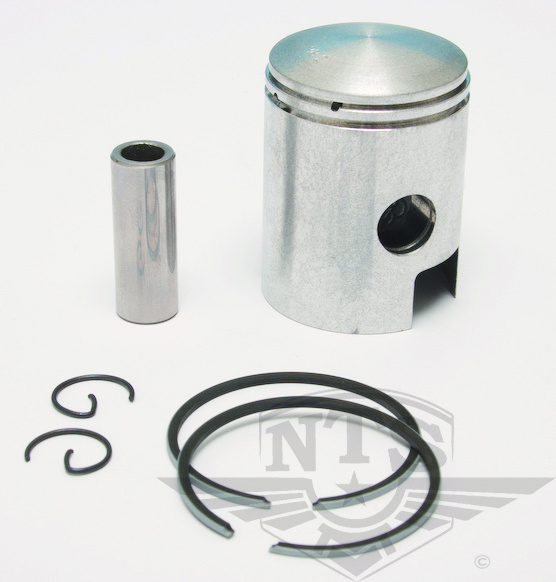

Contains:

  • 1pc. Piston 38,2mm
  • 2pcs. Piston Ring 38,2x2mm (01-16-701)
  • 1pc. Piston Pin 12x31mm (01-82-401)
  • 2pcs. Clip for piston pin 12mm (01-11-504)

The piston must be oiled during assembly and don't forget to check the needle bearing!
For the longest possible durability and lifetime, the piston should be "driven in" during the first approx. 200 kilometers.

*Pistons marked with an arrow, the direction of the arrow must be towards the exhaust port.
*Pistons marked with IN must be against the intake.

    Produkten passar till

    • Piaggio
      • Ciao
