Crank Shaft Compl. NTS for Sachs 50/A

High-quality crankshaft final inspected and finely calibrated (aligned) in Sweden.

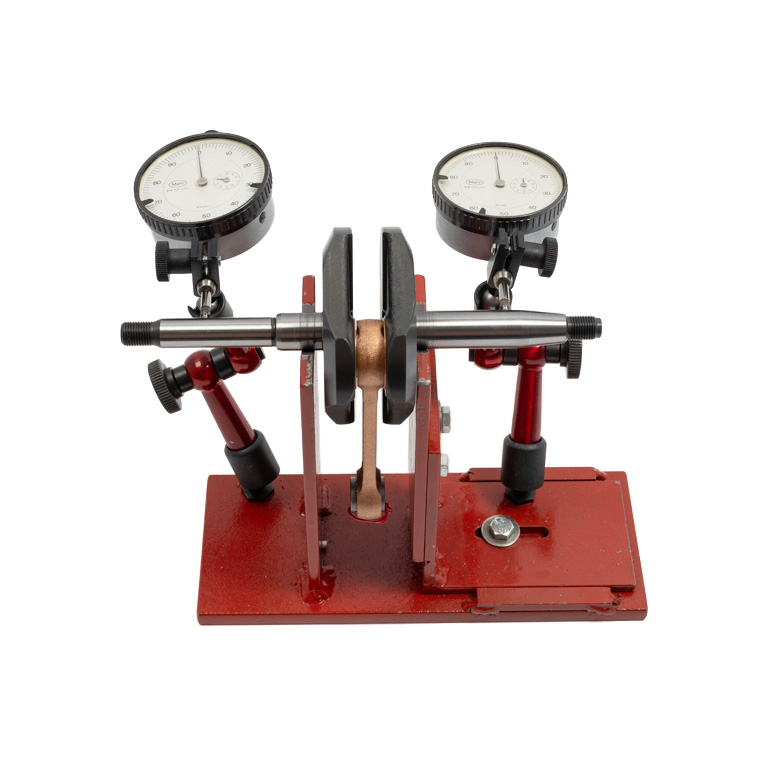

  • Balance between the halves (pic.3): max run out= <0.03/side.

In the weight ratio, very well balanced crankshaft for optimal function and very little vibration, especially when used together with NTS pistons.

Supplied complete with needle bearing for the piston pin.

Specification

SKU:
18-51-501
Category
Weight 1,04 kg
Original number

0288 134 001, 0286 346 000

Trademark

NTS

Standard Unit

Pcs

Additional Info

Technical data:

  • Needle bearing: 12x15x14(for 12mm piston pin NTS: 01-11-303)
  • Cone for flywheel: Conicity 1:5 (entry diameter ~12mm)
  • Thread flywheel side: M10x1
  • Thread transmission side: M10x1
  • Woodruff key, fly-wheel: 3×3,7 (NTS: 01-38-701)
  • Stroke: 42mm


Fits for models with pedals or recoilstarter.
50/AE X, 50/AM A, 50/AM B, 50/AMA, 50/AM I, 50/AMA X, 50/AMA SF, 50/A S, 50/AL S, 50/AML S, 50/AMAL X, Saxonette 2g. Automatic

    The product is suitable for

    • Sachs
      • 50/A MAL (X), LS, ML (S), MLR (S, X), MLC
      • 50/A MB, MA (SF, I, X) S, DL (X), E (X)
